Advanced CNC Heating Bending Machine For Angle & Plate For Steel Structures
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
CNC heating bending machine for steel
,CNC angle punching machine with warranty
,steel structure plate bending machine

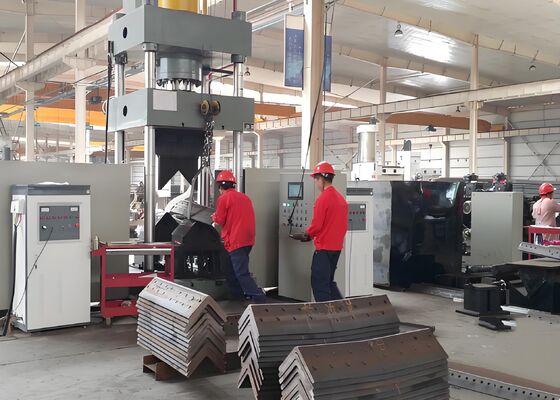

Advanced CNC Heating Bending Machine For Angle & Plate For Steel Structures
Product Introduction:
Mainly used for angle steel bending and plate bending.
Product configuration:
| Model | HQ360-900 | |
| Oil Tank Pressure (kN) | 3150 | |
| Outside double-sided bending size (Heel up ) (mm) | L80*7~L360*40 | |
| Outward double-sided bending degree for angles (°) | 30° | |
| Angle steel forward single bending range (mm) | L100*10~L300*30 | |
| Angle steel forward single bending degree (°) | 20° | |
| Bending Plate thickness (mm) | 2~20 | |
| Bending Plate width (mm) | 900 | |
| Bending degree for plates (°) | 90° | |
| Angle opening & closing range (mm) | L100*10~L300*30 | |
| Angle opening & closing degree (°) | 16° | |
| Oil Tank Stroke (mm) | 950 | |
| Max.opening height (mm) | 1400 | |
| Motor Power (kW) | 22 | |
| Heating power (kW) | 120*2 | |
| CNC Axis | 3 | |
| Oil tank capacity (L) | 720 | |
| Overall size (m) | 4.2x4.5x4.1 | |
Product Features:
1. The machine is equipped with a high-performance CNC control system integrated with a touchscreen Human–Machine Interface (HMI), providing convenient parameter input, real-time process supervision, and continuous monitoring of equipment operating conditions. This intelligent control architecture simplifies machine operation, enhances production management efficiency, and improves overall manufacturing performance.
2. The equipment adopts advanced ultrasonic-frequency induction heating technology, offering rapid heating, high energy efficiency, and environmentally responsible operation. This innovative heating method improves production throughput, reduces energy consumption, and meets the requirements of modern sustainable manufacturing processes.
3. Designed as an integrated multifunctional forming solution, the machine combines multiple forming operations within a single system without the need for additional tooling or specialized forming dies. This optimized configuration reduces setup procedures, lowers tooling expenses, and increases production flexibility.
4. By utilizing advanced CNC positioning and precision motion control technology, the machine achieves accurate regulation of bending angles and forming dimensions. This ensures consistent product quality, excellent repeatability, high forming accuracy, and improved production efficiency.
5. The equipment incorporates an independent hydraulic power station together with a fully integrated electrical control system, providing stable performance, enhanced operational safety, convenient maintenance, and reliable operation for continuous heavy-duty industrial production.
6. The cold-forming function is designed for processing angle steel profiles up to L100 × L100 × 10 mm, with a maximum allowable bending angle of 5°. This capability ensures precise deformation control, excellent dimensional accuracy, and consistent forming quality.
7. Under normal production conditions, the cold-forming cycle requires approximately 10 seconds per workpiece, while the thermal forming cycle generally takes around 120 seconds, depending on material characteristics and component dimensions. Hot forming begins after the workpiece temperature reaches approximately 800°C (red-hot condition), with heating parameters automatically adjusted according to material properties and required bending specifications.
8. During thermal forming operations, operators only need to input the required process parameters and initiate the automatic cycle through either the start button or foot switch. The machine then completes the entire forming procedure automatically, including induction heating positioning, controlled heating, automatic withdrawal of the heating unit, hydraulic forming, ram return, and finished component discharge.
9. In the integrated hot- and cold-forming operating mode, the production cycle starts immediately after process parameters are entered. The hydraulic ram remains in the forming position, while the lower forming die automatically lifts approximately 100 mm to create sufficient clearance for quick removal of the finished workpiece. This optimized operating sequence effectively shortens cycle time and significantly improves overall production efficiency.
The demonstration workpieces are produced by the*CNC Angle Steel Punching, Marking, and Cutting Production Line in accordance with the standard specifications and manufacturing practices widely adopted in the transmission tower industry. These representative samples allow customers, engineers, and quality inspectors to evaluate machining accuracy, dimensional precision, surface finish, and overall processing quality, clearly demonstrating the machine's capability to meet the demanding manufacturing requirements of transmission tower fabrication.
In Ultra-High-Voltage (UHV) power transmission projects, where transmission towers must withstand harsh environmental conditions and heavy structural loads throughout their operational lifespan, this equipment performs a critical manufacturing function. It accurately processes the angle steel components that form the primary load-bearing framework of transmission towers by carrying out high-precision drilling and punching on tower legs, cross-arms, and other essential structural members. The system ensures precise hole locations, reliable assembly accuracy, and outstanding dimensional consistency, thereby improving structural integrity, operational safety, and long-term service performance. As a result, it provides a highly dependable manufacturing solution for modern UHV transmission infrastructure and large-scale tower production.
