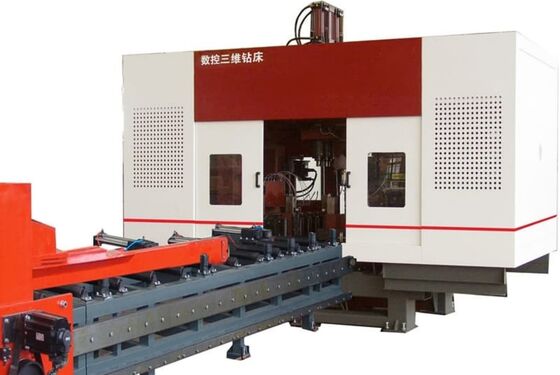

Industrial High-Speed CNC H Beam Drilling Machine With Three Independent Spindles
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Industrial CNC H Beam Drilling Machine
,High-Speed H Beam Drilling Machine
,Three Spindle CNC Beam Driller
Industrial High-Speed CNC H Beam Drilling Machine With Three Independent Spindles
Product Introduction:
The CNC 3D Drilling Machine is equipped with three independent drilling units, including vertical, left-side, and right-side spindle assemblies. Each drilling unit is driven by two CNC-controlled axes and a digitally regulated hydraulic feed system operating perpendicular to the workpiece. The drilling tools are mounted through a quick-change tool holder, allowing rapid and accurate tool replacement. Each spindle unit functions independently, enabling simultaneous multi-directional drilling. Once the workpiece is automatically clamped, the complete hole pattern can be machined within a single processing cycle, significantly improving machining efficiency and positioning accuracy.
Product Parameters:
| Model | BHD1000/3 |
| H Beam width range (mm) | 100~1000 |
| H Beam height range (mm) | 100~500 |
| Channel steel width range (mm) | 100~1000 |
| Channel steel height range (mm) | 100~250 |
| Max. workpiece thickness (mm) | 80 |
| Max. workpiece length (m) | 12 or 15 (optional) |
| Drilling spindle qty. | Total 3 spindles, one spindle on the upper unit, left side and right side respectively |
| Spindle hole taper | BT40 |
| Max.drilling diameter (mm) | 40 |
| Spindle motor power (kW) | 11/15 |
| Spindle speed (r/min) | 100~3000 |
| Spindle feeding speed (m/min) | 0~10 |
| X-axis feeding speed (m/min) | 0~20 |
| Qty of tool magazine | 3 |
| Tool magazine type and capacity | Row type, 3x4 (optional) |
| Marking unit (optional) | Disc typing, 36 characters, character size Φ10mm |
| CNC system | German, Japan, China INVT |
| Cooling method | Spray cooling, internal cooling + external cooling |
| Machine Overall Size (m) | About 33x5.5x3.5 |
| Total Power(kW) | About 60 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Product Features:
1. The machine is configured with three independently operated drilling units, allowing simultaneous multi-angle machining operations. Each drilling module is equipped with an individual high-precision spindle head, providing superior drilling efficiency, excellent hole positioning accuracy, and stable, repeatable machining quality.
2. The system eliminates the need for manual input of workpiece thickness and drill tool length. With an intelligent detection function, the equipment automatically identifies machining conditions and adjusts feed speed and drilling parameters accordingly, ensuring efficient, stable, and reliable processing performance.
3. The machine frame is manufactured from heavy-duty welded steel plates reinforced with square structural sections. After advanced stress-relief treatment, the highly rigid structure, combined with roller-supported spindle guidance assemblies, delivers outstanding rigidity, excellent vibration resistance, and long-term dimensional stability, ensuring precision machining performance throughout continuous operation.
4. The CNC control system supports automatic loading, recognition, and conversion of engineering drawings generated by AutoCAD and professional steel detailing software. Compatible with DXF, NC1, and other commonly used file formats, the system enables seamless integration with existing digital design, manufacturing, and production management platforms.
5. A centralized automatic lubrication system and an independent air-conditioning system for the electrical control cabinet are included as standard configurations. These systems help maintain stable operating conditions, minimize component wear, improve equipment reliability, and extend the overall service life of the machine.
6. The equipment incorporates a fully automated material handling system capable of automatic workpiece clamping, positioning, and feeding. This intelligent automation reduces manual operation requirements, improves production efficiency, and significantly decreases operator workload.
7. The PLC-based CNC control system operates within a Windows-based industrial environment and is equipped with an intuitive Human–Machine Interface (HMI). Featuring high-speed data processing, graphical simulation, and real-time machining monitoring functions, the system simplifies operation, enhances programming efficiency, and improves production management.
8. Each drilling spindle is powered by a high-performance motor supplied by internationally renowned manufacturers, ensuring dependable operation, efficient machining capability, and consistently excellent drilling performance.
9. All essential mechanical, hydraulic, pneumatic, and electrical components are selected from globally recognized suppliers, providing outstanding reliability, extended component durability, reduced maintenance requirements, and stable long-term operation.
The demonstration workpieces produced by the CNC H-Beam Drilling, Marking, and Shearing Machine include standard H-beam sections featuring different flange widths and web thicknesses, as well as channel steel samples in various specifications. These representative components clearly demonstrate the machine’s ability to achieve accurate hole positioning, high-quality thread processing, and precise marking performance. They provide customers, engineers, and quality control professionals with an effective reference for evaluating machining accuracy, process consistency, and equipment reliability under actual production conditions.
The High-Speed CNC H-Beam Drilling, Marking, and Shearing Machine is widely applied in structural steel fabrication, bridge engineering, and other heavy-duty steel manufacturing sectors. In steel fabrication facilities, the equipment performs high-precision drilling, marking, and shearing operations on H-beams used for structural frames, support structures, and load-bearing assemblies, ensuring accurate component fabrication and efficient project installation. For bridge construction applications, the machine provides precise machining of H-beam structural members, improving connection accuracy, structural strength, and long-term load-bearing performance. By combining high production efficiency, exceptional machining precision, and reliable operational stability, the equipment delivers an advanced manufacturing solution for large-scale infrastructure projects, helping manufacturers improve productivity, enhance product quality, and optimize overall project execution.
