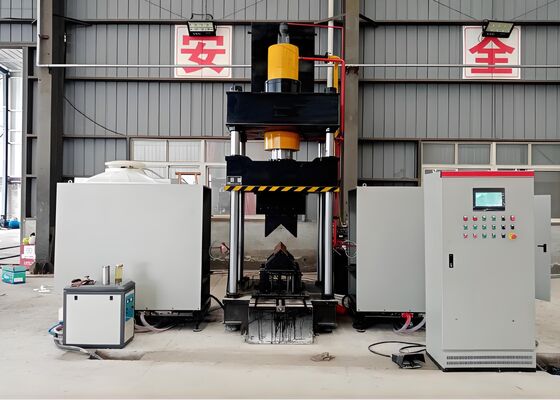

Steel Structure Fabrication CNC Heating Bending Machine Power Transmission Tower Manufacturing
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Steel Structure Fabrication CNC Heating Bending Machine Power Transmission Tower Manufacturing
Product Introduction:
The angle steel bending machine is primarily used for bending angle steel and sheet metal, and is chiefly applied in industries such as power towers, communication towers, power fittings, steel structures, storage racks, and others.
Product configuration:
| Model | HQ250-700 | |
| Oil Tank Pressure (kN) | 1600 | |
| Outside double-sided bending size (Heel up ) (mm) | L80*7~L250*32 | |
| Outward double-sided bending degree for angles (°) | 30° | |
| Angle steel forward single bending range (mm) | L80*7~L200*20 | |
| Angle steel forward single bending degree (°) | 20° | |
| Bending Plate thickness (mm) | 2~16 | |
| Bending Plate width (mm) | 700 | |
| Bending degree for plates (°) | 90° | |
| Angle opening & closing range (mm) | L80*7~L200*16 | |
| Angle opening & closing degree (°) | 16° | |
| Oil Tank Stroke (mm) | 800 | |
| Max.opening height (mm) | 1300 | |
| Motor Power (kW) | 15 | |
| Heating power (kW) | 60*2 | |
| CNC Axis | 3 | |
| Oil tank capacity (L) | 630 | |
| Overall size (m) | 3.5x4.5x4.1 | |
Product Features:
1. The system is outfitted with a numerically controlled programmable controller, featuring a touchscreen interface that facilitates effortless data input and real-time status monitoring, ensuring ease of operation.
2. It incorporates advanced ultrasonic frequency induction heating technology, which considerably enhances production efficiency, lowers operational costs, and supports environmental sustainability in the manufacturing process.
3. This machine offers exceptional flexibility, operating without the need for additional tools or molds.
4. CNC control is utilized to precisely regulate the molding angle of the workpiece, ensuring consistent product quality and maximizing production efficiency.
5. The system is equipped with a custom-designed hydraulic and electrical control setup, simplifying operations for greater user convenience while ensuring safety and reliability, thus boosting overall production efficiency.
6. Cold pressing is suitable for workpieces with dimensions up to L100×L100×10 and a bending angle not exceeding 5°.
7. The standard cycle time for cold pressing is 10 seconds per operation, while the heating phase lasts 120 seconds per cycle (depending on the material type and workpiece specifications). The workpiece is processed once the heating temperature reaches 800°C (or a red-hot state), with the exact temperature and bending angle determined by the material and specific requirements.
8. During both the heating and processing phases, parameters are pre-configured, and the cycle is initiated by either pressing the start button or activating the footswitch. The process involves fully automated heating, followed by the completion of the heating phase, pressing the workpiece, raising the head, and removing the processed workpiece.
9. During both the heating and cold pressing phases, parameters are pre-configured, allowing for immediate cold pressing without the need for the pressing head to return to its initial position. The lower pressing mold is raised by 100mm, ensuring the effortless removal of the workpiece while preserving high operational efficiency.
These test samples, derived from the production line of angle steel punching, cutting, and marking machinery, adhere to the standard specifications and processing parameters typically employed in the angle steel tower industry. They provide users with a direct means of evaluating the equipment's processing quality, precision, and workmanship—critical performance metrics that highlight the equipment's capability to meet the rigorous operational demands of angle steel tower manufacturing.
In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers endure extreme weather conditions and significant structural stresses, this equipment is crucial for processing the angle steel components that form the primary load-bearing framework of the towers. It reliably performs drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other essential structural elements, ensuring precise machining and secure structural connections. This process maintains the overall integrity of the transmission towers, which is vital for the safe and uninterrupted operation of UHV power transmission systems.
