Product Description:

Our Robotics provides users with a simplicity and efficiency intelligent solution for automated welding of pipe towers.

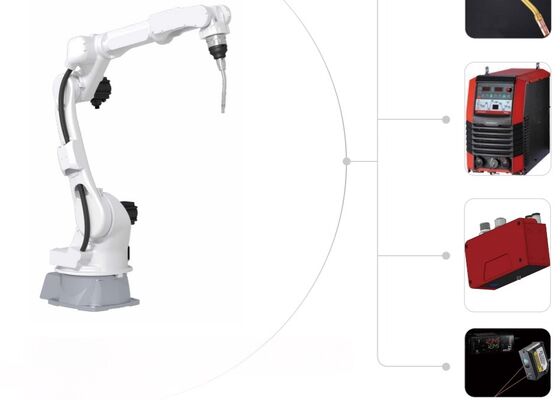

By fully integrating robot control technology, 3D vision systems, edge computing and advanced welding processes, we offer a one-stop solution to overcome the challenges of traditional robotic welding-such as lengthy teaching programming time, high learning costs,and inefficiencies caused by human-robot transitions that increase labor expenses.

Our customized welding solution is specifically designed for pipe towers, ensuring optimal performance and quality.

Solution Features:

Manifold Intelligent Welding. Parametric input with auto-generated welding paths, requiring zero manual intervention, High intelligence with low operational threshold

Quick deployment - Plug-and-play operation

Rapid switching program - Teaching-free programming for different workpieces

Fast training - Intuitive and easy to master

Enhanced productivity

Stable and improved welding quality - Quantifiable weld quality metrics

Reduced labor intensity - Capable of operating in hazardous environments

Parametric Input

The weld seam distribution and quantity on tower legs follow certain patterns. By inputting specific model-related parameters, the robot's working program can be automatically generated with a single click.

The programmer doesn't need to learn complex knowledge of robotics or software.

Simply input parameters according to production drawings to complete work piece programming

What originally required over ten hours of programming time can now be completed in just five minutes.

Solution1 (unilateral welding) Adopts a fixed roller frame with dual- robot configuration

Advantages: 1.cost-effective-Relatively lower investment cost

2. Rapid deployment-shorter implementation cycle

3. convenient loading - optimized material feeding accessibility

Disadvantages:1.Limited diameter compatibility - Restricted range of adaptable size specifications

2. unilateral welding constraint - Inaccessible flange welding on opposite side; length-direction incompatibility

3. Roller frame precision requirement - Rotation accuracy requires verification

Solution2 (Bilateral welding) Adopts a fixed roller frame with dual- robot configuration

Advantages: 1.Full-size compatibility - Accommodates all dimensional specifications

2. Dual-side simultaneous welding - High-efficiency processing accessibility

Disadvantages:1.Higher capital cost-Relatively increased investment requirement

2. complex material loading-Less convenient work piece handling

3. Extended implementation -longer deployment timeline
