Automatic CNC Angle Punching Marking And Shearing Line With Servo Feeding
| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
servo feeding CNC angle punching machine
,automatic CNC angle marking line
,CNC angle shearing machine with servo

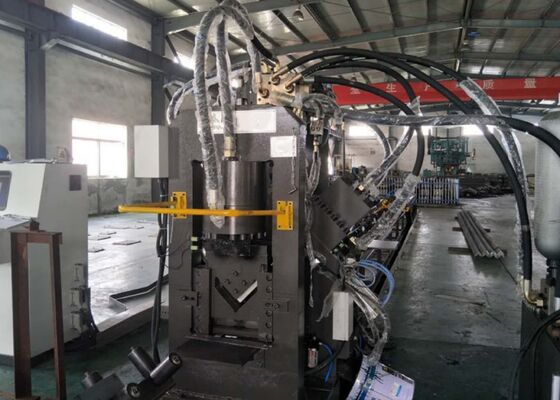

Automatic CNC Angle Punching Marking And Shearing Line With Servo Feeding
Product Introduction:
The CNC Angle Line Machine is a high-precision, full-automatic integrated processing system purpose-built for the marking, punching, drilling, shearing and cutting of angle steel profiles. It finds extensive application in power transmission tower construction, communication tower manufacturing, steel structure production, bridge engineering and a wide range of metal processing sectors. Replacing traditional manual workflows, this equipment enables high-efficiency, high-precision and standardized mass processing of angle steel materials.
1. Adopting self-developed proprietary control software, the machine supports one-click startup for immediate operation and direct standby shutdown. It eliminates the need for axis homing after system restart, enabling non-stop continuous production and substantially boosting overall operational efficiency.
2. In addition to compatibility with DXF file formats, the equipment achieves seamless integration with TEKLA software, fully catering to customers’ diversified and customized production demands.
3. This all-in-one processing system can automatically complete punching, marking and cutting procedures in a single clamping setup.
Product Parameters:
| Model | JNC1616 |
| Angle size (mm) | 40х40х3~160х160х16 |
| Max. Punching (Dia. х Thi.) (mm) | Φ26х16 |
| Punching force (kN) | 1000 |
| Marking force (kN) | 1000 |
| Cutting force (kN) | 3000 |
| Max. length of blank (m) | 14 |
| Max. length of finished (m) | 12 |
| Punches per side | 3 |
| Group of marking letters | 4 |
| Number of letters per group | 18 |
| Character size(mm) | 14x10x19 |
| CNC axes | 3 |
| Cutting mode | Single Blade |
| Cooling method | Water cooling/Air cooling/Oil chiller |
| Max. feeding speed (m/min) | 80 |
| Programming mode | Lofting software or instruction programming |
| Overall dimension (m) | About 32x7x3 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Product Features:
1. Infeed Carriage
The feeding carriage assembly comprises a mobile trolley, clamping mechanism, clamping cylinder, oscillating cylinder, servo motor and other auxiliary components. During material feeding, the trolley travels along two high-precision guide rails mounted on the feeding conveyor, delivering superior positioning accuracy, stable operational performance and low running noise.
2. Infeed Conveyor
The conveyor base is fabricated from integrally formed thick steel plates with a seamless non-welded structure, which greatly enhances load-bearing capacity. Fitted with premium brand bearings as standard, the conveyor rollers feature high structural strength and extended service life. The optimized structural design ensures stable and efficient feeding of angle steel into the main unit, supporting smooth and uninterrupted processing operations.
3. Horizontal Feeding Table
Driven by a motor and reducer via sprocket-chain transmission, the horizontal feeding table guarantees stable and reliable material transportation of angle steel with minimal operational noise throughout the conveying process.
4. Marking Unit
The marking unit consists of a frame-fixed support base, a movable working platform, hydraulic pressure head and four-position hydraulic cylinder. Controlled by the professional numerical control system, it executes high-precision marking at designated positions in strict accordance with engineering drawing specifications.
5. Punching Unit
Three punching specifications are available on each side of the unit, with each punching tool equipped with an independent die selection cylinder. This design supports multi-row and diversified hole pattern punching on both flanges of angle steel.
6. Cutting Unit
A single-blade shearing mechanism is adopted for processing angle steel and channel steel. For flat steel materials, the unit is capable of both straight cutting and arc shearing processes to meet varied processing needs.
7. Outfeed Conveyor
The outfeed conveyor is assembled with material feeding rollers, workpiece support rollers and single-sided or double-sided turnover cylinders. With intelligent tipping control, it enables finished workpieces to be discharged from either the left or right side flexibly.
8. Hydraulic Station
The hydraulic station is equipped with optional water cooling or air cooling systems to maintain constant and stable temperature, effectively preventing hydraulic pump overheating and ensuring long-term stable equipment operation.
Manufactured in strict compliance with the industry’s standard specifications and processing criteria for angle steel towers, the finished workpieces intuitively demonstrate the equipment’s excellent machining quality, high precision and sophisticated manufacturing craftsmanship.
This specialized equipment is designed for precision hole punching and fixed-length cutting of angle steel, with full servo motor control for all positioning and feeding actions. It is widely applicable in multiple industries including communication towers, solar mounting systems, warehouse storage racks, grain silos, construction scaffolding and automotive manufacturing.
