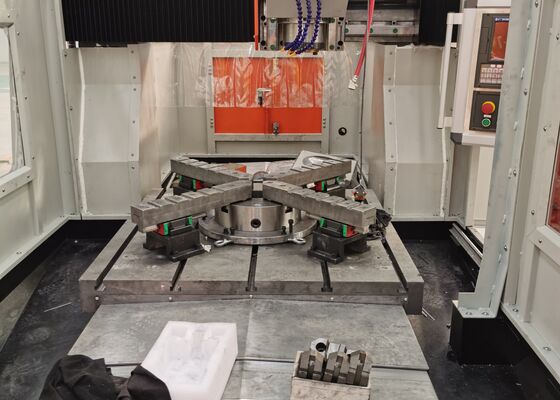

Construction Machinery Industry CNC Plate Tapping Machine Boiler Manufacturing Industry
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Construction Machinery Industry CNC Plate Tapping Machine Boiler Manufacturing Industry
Product Introduction:
This machine is suitable for drilling plate & pipe,baffle and flange in the petrochemical, boiler, refrigeration, wind power flange and other industries. It can also be used in the drilling of connecting plate in the steel structure such as building, bridge, tower and so on.
Product parameters:
| Model | PHD1010 | |
| Workpiece size | LxW (mm) | 1000x1000 |
| T-slot width of Workbench (mm) | 28 | |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT40 | |
| Max. drilling diameter (mm) | Φ50 | |
| Max. thickness (mm) | ≤180 | |
| Tapping diameter | M3-M20 | |
| Spindle speed (r/min) | 30~3000 | |
| Servo spindle motor power (kW) | 11 | |
| Lateral movement of power head (X axis) | Max. horizontal stroke (mm) | 1000 |
| Lateral movement speed (r/min) | 0~8 | |
| Servo motor power for lateral movement (kW) | 2.4 | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke (mm) | 1000 |
| Feed moving speed (m/min) | 0~8 | |
| Feed servo motor power (kW) | 2.4 | |
| Vertical ram feed motion (Z axis) | Max. stroke (mm) | 400 |
| Moving speed (m/min) | 0~8 | |
| Servo motor power (kW) | 2.4 | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.02/1000 |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.01/1000 |
| Electrical system | CNC system | SIEMENS/ FAGOR/ KND/ GSK |
| Tool changer | Disc type (Optional) | 24 tool positions |
| Overall size | LxWxH (m) | 3.2x2.2x2.2 |
Product Feature:
1. The machine mainly consists of the bed and the longitudinal slide table, gantry and the horizontal slide table, the vertical sliding pillow drilling power box, the work table,the electric control system, the hydraulic system, the cooling system, the chip system,the centralized lubrication system and so on.
2. The machine adopts movable gantry and fixed worktable, save the floor area.
3. The machine bed and worktable are independent,which improves the stability of the equipment and effectively reduces the vibration generated during high-speed drilling.
4. The longitudinal and lateral movements of machine tools are guided by precision roller linear guide, which greatly increases the rigidity of the equipment.
5. The spindle motor uses a special servo motor to drive the spindle through the synchronous belt, stepless speed regulation, low speed torque, can withstand heavy cutting load,and can be suitable for high-speed machining of hard alloy tools.
6. The main axis of drilling is Taiwan precision spindle (internal cooling), the main axis cone hole BT40, with a butterfly spring automatic broaching mechanism, through the rod to install the drill or milling cutter, the hydraulic cylinder loose knife, the replacement tool is very convenient.
The CNC gantry plate cutting machine is a high-performance industrial solution, carefully designed for the precise machining of plate-like components and structural elements. This equipment is tailored to process workpieces such as flanges, discs, rings, and flat plates, with the critical condition that the thickness of these components falls within the machine's specified effective machining capacity.
In steel structure fabrication workshops, this plate drilling machine performs precise drilling and milling operations on structural plates and connecting components, providing a strong foundation for the stable assembly of steel frameworks. Within the wind power sector, it offers high-precision machining for wind turbine towers and flanges—critical operations that ensure these components can endure extreme environmental conditions (e.g., high winds, temperature variations). For bridge construction projects, the equipment processes bridge girders and supports, ensuring the creation of stable and durable connections capable of withstanding dynamic loads throughout the bridge’s extended lifespan.
