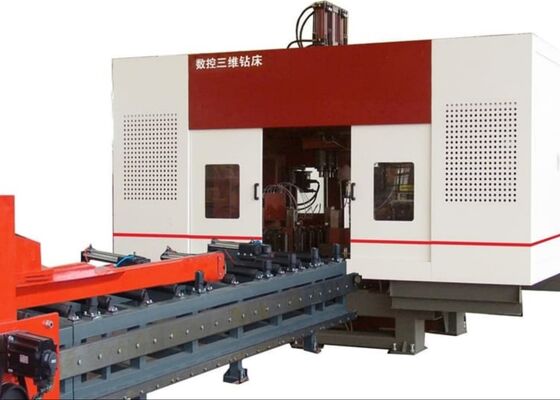

Tower Manufacturing CNC Structural Steel Drilling Machine Communication Tower Fabrication
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Tower Manufacturing CNC Structural Steel Drilling Machine Communication Tower Fabrication
Product Introduction:
The machine is primarily engineered for processing holes on H-beams, channel beams, angle beams, and plates, encompassing drilling and marking functions. It is characterized by high-speed performance, with the positioning and feeding of its three spindles driven by servo motors. The system incorporates spindle servo motors controlled by a PLC, while feeding is facilitated by a CNC carriage, ensuring both exceptional efficiency and precision. This machine is extensively used across industries such as construction, bridge fabrication, tower mast production, and rack manufacturing, among others.
Components
This production line is principally comprised of a horizontal material loading table, a 3D drilling main machine, a 3D drilling feed channel, a 3D drilling feeding mechanism, a 3D drilling discharge channel, a cooling system, a hydraulic system, a pneumatic system, a lubrication system, an electrical system, and various other components. The production line is designed with a fixed bed and a movable workpiece structure, enabling efficient automated production.
Product Parameters:
| Model | BHD1250/3 |
| H Beam width range (mm) | 100~1250 |
| H Beam height range (mm) | 100~600 |
| Channel steel width range (mm) | 100~1250 |
| Channel steel height range (mm) | 100~300 |
| Max. workpiece thickness (mm) | 80 |
| Max. workpiece length (m) | 12 or 15 (optional) |
| Drilling spindle qty. | Total 3 spindles, one spindle on the upper unit, left side and right side respectively |
| Spindle hole taper | BT40 |
| Max.drilling diameter (mm) | 40 |
| Spindle motor power (kW) | 11/15 |
| Spindle speed (r/min) | 100~3000 |
| Spindle feeding speed (m/min) | 0~10 |
| X-axis feeding speed (m/min) | 0~20 |
| Qty of tool magazine | 3 |
| Tool magazine type and capacity | Row type, 3x4 (optional) |
| Marking unit (optional) | Disc typing, 36 characters, character size Φ10mm |
| CNC system | German Siemens, Japan Panasonic, China INVT |
| Cooling method | Spray cooling, internal cooling + external cooling |
| Machine Overall Size (m) | About 33x6x3.5 |
| Total Power(kW) | About 60 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Machine Feature:
1. The entire machine is engineered with an optimized integrated design, incorporating a high-quality machine body and drilling units that provide exceptional stability and rigidity during high-speed drilling operations. The machine consists of the main unit, CNC sliding tables (3), drilling spindle boxes (3), clamping devices, detection systems, cooling system, scrap collection box, hydraulic station, lubrication system, tool magazine (optional), and marking unit (optional).
2. The main machine is constructed using welded square pipes, with reinforcement applied in high-stress areas. Following the welding process, the machine undergoes an artificial aging treatment. These procedures collectively enhance the stability of the main machine, ensuring the overall precision and reliability of the complete system.
3. The machine is outfitted with three CNC sliding tables: a fixed-side CNC sliding table, a movable-side CNC sliding table, and an intermediate CNC sliding table. These three sliding tables share a consistent design, comprising a sliding plate, sliding table, and a servo drive system.
4. Each of the three sliding tables is equipped with two types of CNC axes, totaling six axes: three feeding CNC axes and three positioning CNC axes. Every CNC axis is supported by precision linear rolling guides and powered by an AC servo motor and ball screw system, ensuring superior positioning accuracy.
5. The machine incorporates three spindle boxes, each mounted on one of the CNC sliding tables, enabling both horizontal and vertical drilling operations. Each spindle box can operate independently or simultaneously, providing versatile drilling capabilities.
6. The machine is equipped with a high-speed precision spindle from a reputable Taiwanese brand, model BT, specifically engineered to handle both carbide and high-speed steel drills. Each CNC axis is supported by robust roller linear guides, powered by servo motors and roller screws, ensuring exceptional rigidity and positional accuracy.
7. Furthermore, the machine features a hydraulic tool cylinder that employs a hydraulic-disc spring mechanism for automatic tool de-clamping and removal. A tool status monitoring system is integrated to verify the clamping condition, alongside a reliable safety co-locking protection device. This system simplifies tool changes. The spindle is driven by a spindle servo motor and a timing belt with a reduction ratio of i=2, offering a spindle speed range of 0 to 3000 RPM, thus providing a broad spectrum of rotational speeds.
8. The workpiece is securely fixed in place using a hydraulic clamping system, which consists of five hydraulic cylinders for both horizontal and vertical clamping. Horizontal clamping is achieved through a fixed-side datum and a moving-side clamping mechanism. While the fixed side remains stationary, the moving side is driven by a large-cylinder sliding table, guided by linear rails, to move toward the fixed side and clamp the workpiece horizontally. Vertical clamping is provided on both the fixed and moving sides, with each cylinder actuating a pressure bar that moves up and down in four positions, ensuring secure vertical clamping of the workpiece.
9. The machine utilizes an NC carriage for feeding. The NC carriage is decelerated by a servo motor through a reducer, and the motion is transferred via a gear rack to drive a laser alignment device. As the workpiece is fed into the machine, it is detected and fed back, ensuring precise positioning of the workpiece.
10. Cooling System: The machine is equipped with an air-fog cooling system, featuring both internal and external cooling. Each drilling spindle box is fitted with an external cooling nozzle and an internal cooling connection, which can be selected based on the drilling requirements. Both internal and external cooling can be operated independently or simultaneously.
11. Chip Collection Box: The chip collection box is mounted on universal casters, making it easy to move and transport.
12. Hydraulic System: The hydraulic system supports the automatic tool mechanism of the ram-type drilling box, horizontal clamping, vertical clamping, side pushing, and power raceway, all with a unified oil supply. All hydraulic units are sourced from reputable imported or joint venture brands for ease of maintenance and to prevent oil leakage. The design incorporates accumulator valves. If the marking unit is included, an independent hydraulic station is provided to handle the marking unit's operations.
During sample demonstration sessions, the CNC beam plate metal drilling, marking, and shearing machine effectively showcases its processing capabilities using standard H-beam samples (with varying flange widths and web thicknesses) as well as channel steel samples in different dimensions. These demonstration samples clearly illustrate the machine's ability to achieve precise hole placement, smooth threaded tapping, and distinct marking patterns, thoroughly emphasizing its outstanding accuracy and reliability in practical applications.
The High-Speed CNC H-Beam Drilling, Marking, and Shearing Machine is predominantly utilized in steel structure fabrication workshops and bridge construction projects. In steel structure fabrication, it performs precise operations on H-beams used in framing and support structures, providing a solid foundation for the secure assembly of steel frameworks. In bridge construction, the machine carries out high-precision drilling on H-beams, enhancing the structural integrity of bridges and ensuring their ability to withstand long-term loads. With its exceptional operational efficiency, the machine consistently supports these vital infrastructure sectors, facilitating the smooth and timely progression of related projects.
