Steel Structural Components Manufacturing Cnc Angle Steel Drilling Line Construction Infrastructure
| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Steel Structural Components Manufacturing Cnc Angle Steel Drilling Line Construction Infrastructure
Product Introduction:
The machine is specialized equipment engineered for drilling and marking angle steel, primarily serving the angle steel tower sector. The Angle Machine is a processing line for drilling and marking angle profile bars, controlled by PLC and PC-based programming. The machine’s positioning and feeding operations are powered by servo motors. It employs a rack-and-gear drive system for CNC carriage feeding, ensuring both high efficiency and precision. This machine is extensively utilized in the tower manufacturing industry.
Product configuration:
| Model | JNC2532 |
| Angle size (mm) | 100×100×10~250×250×32 |
| Max. length of blank(m) | 14 |
| Taper of drilling spindle | / |
| Max. Drilling diameter (mm) | Ф40 |
| Qty. of drill on each side (pcs) | 3 (6 in total on both side) |
| Max.spindle rotation speed (r/min) | Transducer stepless adjustment |
| Max.cutting speed of drill (m/min) | / |
| CNC axes | 3 |
| Range of back mark (mm) | 50-220 (stepless) |
| Max. angle feeding speed (m/min) | 40 |
| Marking force (kN) | 1000/1200 |
| Qty. of character group | 4 |
| Qty. of character in each group | 18 |
| Character size(mm) | 14×10×19 |
| Drill bit cooling system | External cooling |
| Programming mode | Lofting software or instruction programming |
| Overall dimensions (m) | 32x7x2.5 |
Main Component:
This machine is comprised of a transverse conveyor, a rotating loading system, an infeed conveyor, a CNC infeed carriage, a CNC drilling unit, a marking unit, an unloading conveyor, along with hydraulic, electrical, and pneumatic systems, and other essential components.
Product Features:
1. Infeed Conveyor & Feeding Carriage – High-Speed, Dependable, and Accurate
2. Transverse Conveyor & Automatic Loading System – Optimized for High Efficiency
3. Marking Unit – Four Group Marking Character Boxes with Automated Selection
4. Drilling Unit – Twist Drills with Three Diameters and Automated Selection
5. Outfeed Conveyor & Unloading System – Automated Workpiece Unloading
6. Electrical System – User-Friendly Programming & Operation, Compatible with NC1, DXF, DSTV CAM Files
7. Hydraulic Unit & Cooling System – High-Pressure Performance & Air Cooling System

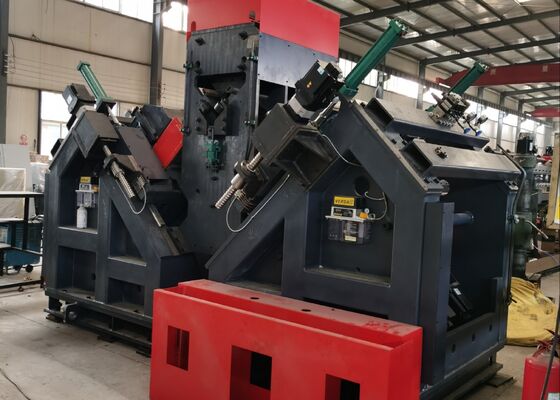

Drilling Section: Three drilling heads can operate simultaneously, with CNC control enabling precise adjustment of drilling positions.
Marking Section: The marking unit is designed with a closed-frame structure, offering superior rigidity, and allows for flexible adjustment of marking positions.
Shearing Section: The shearing unit guarantees a clean cut while minimizing material waste.
These test samples cover a wide range of standard specifications and hole configurations related to the angle steel used in the manufacturing of transmission line towers. They act as a visual reference for potential clients or inspectors to assess the equipment's performance, offering clear and measurable benchmarks to determine whether the equipment meets the production standards necessary for transmission line tower fabrication.
In ultra-high voltage (UHV) transmission line projects, where transmission towers are exposed to extreme weather conditions and substantial loads, this equipment is essential for processing the angle steel components that constitute the primary load-bearing structures of the towers. It effectively performs drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other vital structural components, ensuring outstanding dimensional accuracy and strong connection integrity. As a result, it plays a crucial role in maintaining the long-term structural stability of the transmission towers throughout their entire operational lifespan.
