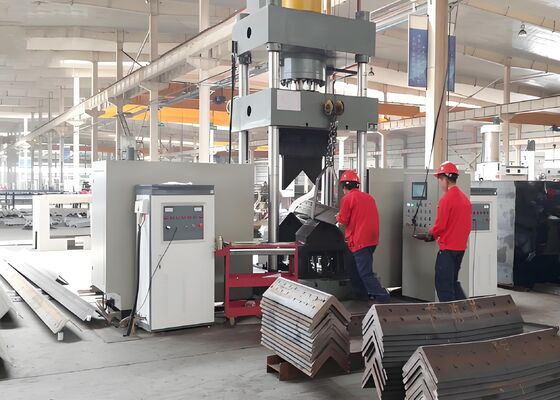

Automatic Hydraulic Construction CNC Angle Steel Fire Bar Iron Bending Heating Machine
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Automatic Hydraulic Construction CNC Angle Steel Fire Bar Iron Bending Heating Machine
Product Introduction:
The angle steel bending machine is primarily designed for bending angle steel and sheet metal. It is widely utilized in industries such as power towers, communication towers, power fittings, steel structures, storage racks, and other related sectors.
Product configuration:
| Model | HQ250-700 | |
| Oil Tank Pressure (kN) | 1600 | |
| Outside double-sided bending size (Heel up ) (mm) | L80*7~L250*32 | |
| Outward double-sided bending degree for angles (°) | 30° | |
| Angle steel forward single bending range (mm) | L80*7~L200*20 | |
| Angle steel forward single bending degree (°) | 20° | |
| Bending Plate thickness (mm) | 2~16 | |
| Bending Plate width (mm) | 700 | |
| Bending degree for plates (°) | 90° | |
| Angle opening & closing range (mm) | L80*7~L200*16 | |
| Angle opening & closing degree (°) | 16° | |
| Oil Tank Stroke (mm) | 800 | |
| Max.opening height (mm) | 1300 | |
| Motor Power (kW) | 15 | |
| Heating power (kW) | 60*2 | |
| CNC Axis | 3 | |
| Oil tank capacity (L) | 630 | |
| Overall size (m) | 3.5x4.5x4.1 | |
Product Features:
1. The system is equipped with a CNC programmable controller, featuring a user-friendly touchscreen interface that facilitates easy data input and real-time monitoring, ensuring streamlined operation.
2. It incorporates cutting-edge ultrasonic frequency induction heating technology, which enhances production efficiency, reduces operational costs, and supports environmental sustainability in the manufacturing process.
3. This machine offers exceptional versatility, operating efficiently without the need for additional tools or molds.
4. CNC control is utilized to precisely regulate the molding angle of the workpiece, ensuring consistent product quality while optimizing production efficiency.
5. The system is equipped with a customized hydraulic and electrical control setup, simplifying operations for greater ease of use while ensuring safety and reliability, thus enhancing overall production performance.
6. Cold pressing is ideal for workpieces with dimensions up to L100×L100×10 and a bending angle not exceeding 5°.
7. Processing Speed: The standard cycle time for cold pressing is 10 seconds per operation, while the heating phase takes 120 seconds per cycle (subject to material type and workpiece specifications). The workpiece is processed once the heating temperature reaches 800°C (or a red-hot state), with the precise temperature and bending angle determined based on the material and specific requirements.
8. During both the heating and processing phases, parameters are pre-set, and the cycle is initiated either by pressing the start button or activating the footswitch. The process involves fully automated heating, followed by the completion of the heating phase, pressing the workpiece, raising the head, and removing the finished workpiece.
9. During both the heating and cold pressing phases, parameters are pre-configured, allowing for immediate cold pressing without the need for the pressing head to return to its initial position. The lower pressing mold rises by 100mm, facilitating the seamless removal of the workpiece while ensuring optimal operational efficiency.
These test specimens, derived from the production line of angle steel punching, cutting, and marking machinery, adhere to the standard specifications and processing conditions typically employed in the angle steel tower industry. They enable users to directly evaluate the equipment's processing quality, precision, and workmanship—critical performance metrics that highlight the equipment's capability to meet the rigorous operational demands of angle steel tower manufacturing.
In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers are subjected to extreme weather conditions and significant structural stresses, this equipment plays a crucial role in processing the angle steel components that form the primary load-bearing framework of the towers. It consistently carries out drilling and stamping operations on the angle steel used in the tower bodies, cross-arms, and other critical structural components, ensuring precise machining and secure structural connections. This process maintains the overall integrity of the transmission towers, which is essential for the safe and reliable operation of UHV power transmission systems.
