Steel Frame Fabrication CNC Angle Steel Drilling Machine Heavy Machinery Manufacturing
| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Steel Frame Fabrication CNC Angle Steel Drilling Machine Heavy Machinery Manufacturing
Product Introduction:
The machine is specialized equipment designed for drilling and marking angle steel, primarily used in the angle steel tower industry. The Angle Machine is a processing line for drilling and marking angle profile bars, controlled by PLC and PC-based programming. The machine's positioning and feeding functions are powered by servo motors. It utilizes a rack-and-gear drive system for CNC carriage feeding, offering high efficiency and precision. This machine is widely used in the tower industry.
Product configuration:
| Model | JNC2532 |
| Angle size (mm) | 100×100×10~250×250×32 |
| Max. length of blank(m) | 14 |
| Taper of drilling spindle | / |
| Max. Drilling diameter (mm) | Ф40 |
| Qty. of drill on each side (pcs) | 3 (6 in total on both side) |
| Max.spindle rotation speed (r/min) | Transducer stepless adjustment |
| Max.cutting speed of drill (m/min) | / |
| CNC axes | 3 |
| Range of back mark (mm) | 50-220 (stepless) |
| Max. angle feeding speed (m/min) | 40 |
| Marking force (kN) | 1000/1200 |
| Qty. of character group | 4 |
| Qty. of character in each group | 18 |
| Character size(mm) | 14×10×19 |
| Drill bit cooling system | External cooling |
| Programming mode | Lofting software or instruction programming |
| Overall dimensions (m) | 32x7x2.5 |
Main Component:
This machine consists of a transverse conveyor, a rotating loading system, an infeed conveyor, a CNC infeed carriage, a CNC drilling unit, a marking unit, an unloading conveyor, as well as hydraulic, electrical, and pneumatic systems, among other components.
Product Features:
1. Infeed Conveyor & Feeding Carriage – High-Speed, Reliable & Precise
2. Transverse Conveyor & Automatic Loading System – High Efficiency
3. Marking Unit – Four Group Marking Character Boxes with Automatic Selection
4. Drilling Unit – Twist Drill & Three Diameters with Automatic Selection
5. Outfeed Conveyor & Unloading System – Automatic Workpiece Unloading
6. Electrical System – Easy Programming & Operation, Compatible with NC1, DXF, DSTV CAM Files
7. Hydraulic Unit & Cooling System – High-Pressure Capability & Air Cooling System

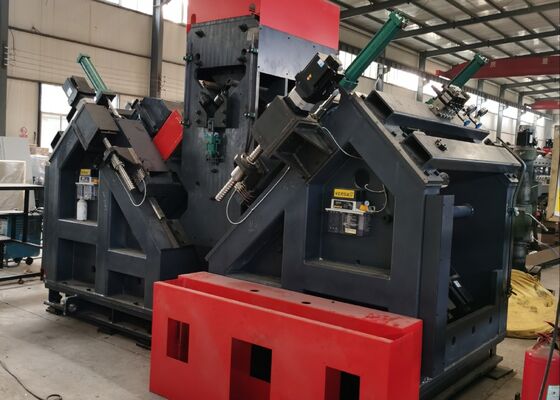

Drilling Section: Three sets of drilling heads can move simultaneously, controlled by CNC to adjust the drilling positions.
Marking Section: The marking unit features a closed-frame design with excellent rigidity, allowing the marking positions to be set freely.
Shearing Section: The shearing unit ensures a clean cutting surface while minimizing material waste.
These test specimens encompass a broad range of standard specifications and hole configurations associated with the angle steel used in the production of transmission line towers. They serve as a visual reference for potential clients or inspectors to evaluate the equipment’s operational performance, providing clear and direct benchmarks to assess whether the equipment complies with the production standards required for transmission line tower manufacturing.
In ultra-high voltage (UHV) transmission line projects, where transmission towers must withstand extreme weather conditions and heavy loads, this equipment is vital for processing the angle steel components that form the primary load-bearing structures of the towers. It efficiently carries out drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other critical structural elements, ensuring exceptional dimensional precision and robust connection integrity. As a result, it contributes to the long-term structural stability of the transmission towers throughout their entire service life.
