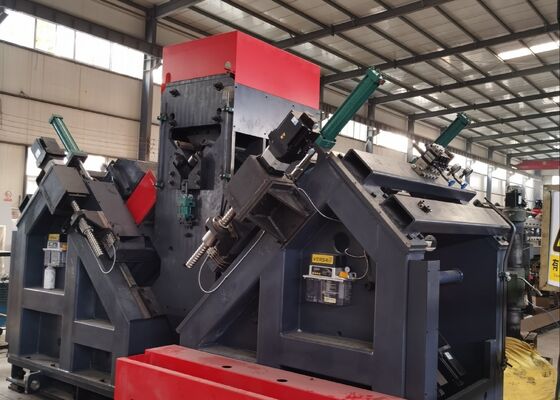

Metal Cutting Industry CNC Angle Steel Drilling and Marking Machine Tower Construction
| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Metal Cutting Industry CNC Angle Steel Drilling and Marking Machine Tower Construction
Product Introduction:
The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry. The Angle Machine is a processing line for driling and marking Angle Profiles bars controlled by PLC and PC Programmable. The positioning, feeding of the machine are driven by servo motors. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in Tower Industries.
Product configuration:
| Model | JNC2532 |
| Angle size (mm) | 100×100×10~250×250×32 |
| Max. length of blank(m) | 14 |
| Taper of drilling spindle | / |
| Max. Drilling diameter (mm) | Ф40 |
| Qty. of drill on each side (pcs) | 3 (6 in total on both side) |
| Max.spindle rotation speed (r/min) | Transducer stepless adjustment |
| Max.cutting speed of drill (m/min) | / |
| CNC axes | 3 |
| Range of back mark (mm) | 50-220 (stepless) |
| Max. angle feeding speed (m/min) | 40 |
| Marking force (kN) | 1000/1200 |
| Qty. of character group | 4 |
| Qty. of character in each group | 18 |
| Character size(mm) | 14×10×19 |
| Drill bit cooling system | External cooling |
| Programming mode | Lofting software or instruction programming |
| Overall dimensions (m) | 32x7x2.5 |
Main Component:
This machine is composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, CNC driling unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems letc.
Product Features:
1. Infeed conveyor & Feeding carriage-Fast, Reliable & Precision
2. Transverse conveyor & Auto Loading System-High Efficiency
3. Marking Unit-Four Group Marking Characters Boxes Auto Chosen
4. Drilling Unit-Twist Drill & Three Diameters Auto Chosen
5. Outfeed conveyor & Unloading System-Auto Unloading Workpiece
6. Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
7. Hydraulic Unit & Cooling System-Powerful Pressure & Air Cooling System
Drilling part: Three groups of drilling heads can move altogether controlled by CNC to change the drilling stadia.
Marking part: Marking unit adopts closed frame with good rigidty,Marking stadia can be set at will.
Shearing part: Shearing unit can ensure neat cut surtace and save raw materials.
These test specimens cover a wide range of standard specifications and hole configurations relevant to the angle steel employed in the manufacturing of transmission line towers. They provide potential clients or inspectors with a visual reference to assess the operational performance of the equipment, offering explicit and direct benchmarks to determine whether the equipment meets the practical production standards required for transmission line tower fabrication.
In ultra-high voltage (UHV) transmission line projects, where transmission towers are required to endure severe weather conditions and substantial loads, this equipment plays a crucial role in the processing of angle steel components for the towers' primary load-bearing structures. It effectively performs drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other essential structural elements, ensuring exceptional dimensional accuracy and strong connection integrity. Consequently, it supports the long-term structural stability of the transmission towers throughout their entire service life.
