Telecom Tower Production CNC Angle Processing Line Power Transmission Line Tower
| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Telecom Tower Production CNC Angle Processing Line Power Transmission Line Tower
Product Introduction:
The JNC series Angle Punching,Marking and Shearing Machine is a complete Processor Profiles for punching ,marking and cutting Angle Profiles bars controlled by CNC and PC Programmable.The positioning, feeding of the machine are all driven by servo motors. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in Steel Construction, Tower Industries. All the holes on the angle steel can be drilled in one pass, and the hole quality and position accuracy are high. It is a special machine for fully automated production.
Product parameters:
| Model | JNC1412 |
| Angle size (mm) | 40х40х3~140х140х12 |
| Max. Punching (Dia. х Thi.) (mm) | Φ26х12 |
| Punching force (kN) | 630/1000 |
| Marking force (kN) | 630/1000 |
| Cutting force (kN) | 2000 |
| Max. length of blank (m) | 12 |
| Max. length of finished (m) | 8 |
| Punches per side | 2 or 3 |
| Group of marking letters | 4 |
| Number of letters per group | 12/8 |
| Character size(mm) | 14x10x19 |
| CNC axes | 3 |
| Cutting mode | Single Blade |
| Cooling method | Water cooling/Air cooling/Oil chiller |
| Max. feeding speed (m/min) | 80 |
| Programming mode | Lofting software or instruction programming |
| Overall dimension (m) | About 25x6.5x2.5 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Product Composition:

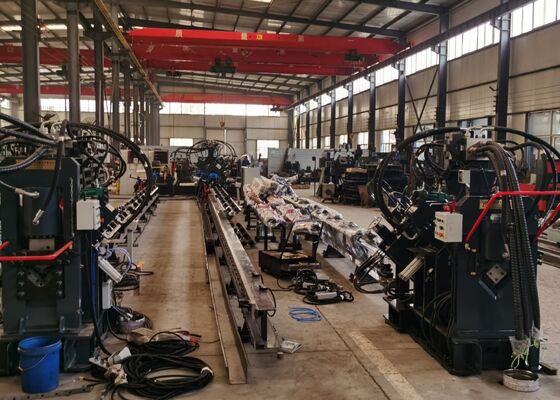

This machine consists mainly of a transverse conveyor, a rotating loading system, an infeed conveyor, a CNC infeed carriage, a punching unit, a marking unit, a cutting unit, an unloading conveyor, along with hydraulic, electrical, and pneumatic systems, among other components.
Product Features:
1. Integrated machine with mechanical, electrical and hydraulic elements;
2. There is a drilling power head on each of the two wings of the angle steel. Each power head has a tool magazine. The tool magazine is equipped with 4 tools. The tool magazine is optional. All holes on the two wings of the angle steel can be processed in one pass;
3. The drilling spindle adopts high-precision BT40 spindle;
4. The drilling spindle can be used to clamp twist drills or hard alloy drills, which has a wide range of applications;
5. The quasi-distance can be set arbitrarily, and the number of punching rows is not limited;
6. The marking unit adopts a closed bed structure, which has good rigidity. Four groups of selected programming on the upper marking box. The marking distance can be set at will;
7. The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
8. The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
9.There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
10. The main electrical control components and hydraulic and pneumatic components are imported accessories;
11. Providing G-code software program that can directly convert CAD graphics into executable machine ;
12. Graph display of processed parts;
1. With fault self-diagnosis function.
These samples, which reflect the standard specifications and processing standards within the angle steel tower sector, enable users to directly evaluate the equipment’s processing quality, precision, and craftsmanship standards.
In the construction of ultra-high voltage (UHV) transmission lines, where towers are required to endure harsh weather conditions and substantial loads, this equipment is indispensable in processing the angle steel components that serve as the foundation of the towers. It reliably executes drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other essential structural elements. This ensures accurate dimensional precision and secure connections, thereby ensuring the overall stability and reliability of the towers.
