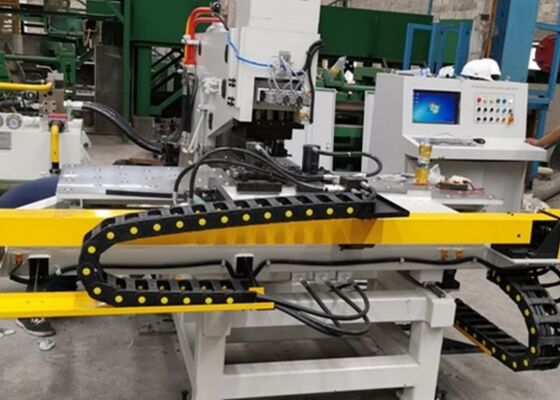

26mm Punching Diameter CNC Iron Plate Steel Puncher Punching Machine 40mm Drilling Thickness
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
26mm Punching Diameter CNC Iron Plate Steel Puncher Punching Machine 40mm Drilling Thickness
Product Introduction:
The CNC plate punching machine is utilized for punching, marking, and drilling steel plates in the fabrication of steel towers. Additionally, it serves a wide range of applications across various industries for punching, drilling, and marking metal plates.
Product specification:
| Model | BNHD120 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | BT50 | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 0~5000 | |
| Stroke of drilling spindle(mm) | 350 | |
| Rotation speed of drilling spindle(r/min) | 30~3000 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.3*3.2*3 | |
Product Features:
1. The plate marking machine’s frame is designed with a C-type welded plate structure, ensuring exceptional rigidity and providing a spacious work area. The machine is equipped with three die stations, one of which is dedicated exclusively to marking, and incorporates automatic die station switching. The clamping system is adaptable to a variety of workpieces, with a zero baffle serving as the reference point, and the workpiece is supported by a rolling-ball work table. The X and Y axis movements are driven by servo motors and ball screws, while the PLC system controls the punching position, enabling full automation of the machining process. The operator inputs the workpiece program, facilitating repeated operations.
2. The steel plate punching machine utilizes CNC technology and servo motor-driven feeding, guaranteeing enhanced efficiency and consistent accuracy in the production of workpieces.
3. The essential functional components are designed with a modular assembly, facilitating straightforward maintenance and repair.
4. Execute punching, marking, and drilling operations on a single plate.
5. The drilling unit is equipped with functions including rapid descent, slow work-feed, and fast return feeding, all aimed at improving operational efficiency.
6. The programming process is straightforward, enabling the input of hole diameter, position, and workpiece quantity into the computer. Furthermore, it supports programs generated by lofting software or direct CAD/CAM conversion.
7. The system is equipped with a self-diagnosis feature for fault detection.
This CNC plate punching machine is a specialized metalworking solution meticulously designed to carry out punching, marking, and drilling operations on steel plates utilized in the steel tower manufacturing industry. It guarantees exceptional machining precision, meeting stringent tolerance standards and surface finish specifications. In addition to its primary role within the steel tower sector, this versatile machine offers dependable punching, drilling, and marking capabilities for metal plates in various other industrial applications. It consistently delivers high operational efficiency and precision for diverse metal workpieces, optimizing workflows and improving product quality across a broad range of industries.
