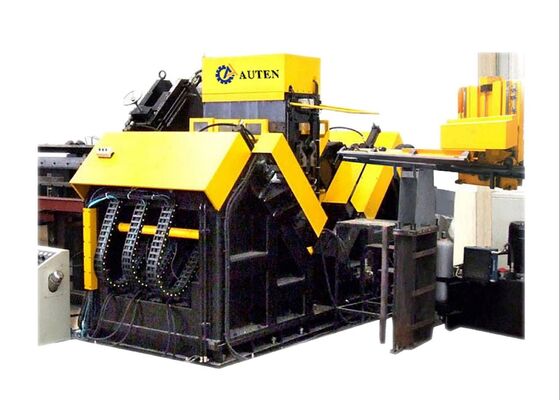

Model ADM3635 CNC Angle Steel Table Drilling Marking Machine Line 9 CNC Axes
Product Introduction:
This cnc angle drill machine is primarily used for drilling and stamping large, high-strength angle steel in transmission line towers. All holes in angle steel can be drilled on this line, achieving high hole quality and positional accuracy, while also offering high production efficiency and a high degree of automation.
Product configuration:
| Model | ADM3635 |
| Angle size (mm) | 100×100×10~360×360×35 |
| Max. length of blank(m) | 14 |
| Taper of drilling spindle | BT40 |
| Max. Drilling diameter (mm) | Ф40 |
| Qty. of drill on each side (pcs) | 3 (6 in total on both side) |
| Max.spindle rotation speed (r/min) | 6000 |
| Max.cutting speed of drill (m/min) | 200 |
| CNC axes | 9 |
| Range of back mark (mm) | 50-330 (stepless) |
| Max. angle feeding speed (m/min) | 40 |
| Marking force (kN) | 1000/1200 |
| Qty. of character group | 4 |
| Qty. of character in each group | 18 |
| Character size(mm) | 14×10×19 |
| Drill bit cooling system | Air atomization dry internal cooling |
| Programming mode | Lofting software or instruction programming |
| Overall dimensions (m) | 34×8.9×3 |
Product Features:
1. High degree of automation. The cnc angle drilling machine production line is equipped with automatic loading device (horizontal feeding channel and rotating loading rack), automatic unloading device and automatic feeding device. All holes and steel stamps on the angle steel can be processed in one go through the production line. The processing process does not require manual assistance, which can greatly reduce the labor intensity of workers.
2. The cnc angle steel metal drilling machine's spindle adopts Taiwan BT40 precision spindle (internal coolant), ensuring high drilling efficiency and accuracy. The drilling unit is equipped with six CNC drilling heads, three on each wing of the angle steel. Holes of the same diameter and at the same distance from the upper ends of the angle steel wings can be drilled simultaneously by the corresponding drilling heads on both sides.
3. Software with Chinese/English interface, easy operation, and can display the drawing of workpiece.
4. Easy programming, just need to input size of workpiece, diameter of holes, stadia and quantity of workpiece when edit program, or use CAD/CAM lofting software direct conversion. lt can read .NC1 files generated by TEKLA software.
5. Key hydraulic, pneumatic and electric parts all famous brands.
6. With self-diagnosis failures function.
7. Shearing unit is optional, using double blades cutting.
These test specimens encompass a broad spectrum of standard specifications and hole configurations pertinent to the angle steel utilized in the manufacturing of transmission line towers. They enable prospective clients or inspectors to visually evaluate the operational performance of the equipment, offering clear and straightforward references to assess whether the equipment satisfies the practical production criteria for transmission line tower fabrication.
In ultra-high voltage (UHV) transmission line projects—where transmission towers must withstand severe weather conditions and significant loads—this equipment is vital for processing angle steel components used in the towers' primary load-bearing structures. It efficiently carries out drilling and stamping operations on the angle steel employed in tower bodies, cross-arms, and other critical structural elements, ensuring precise dimensional accuracy and robust connection integrity. As a result, it guarantees the long-term structural reliability of the transmission towers throughout their entire operational lifespan.
