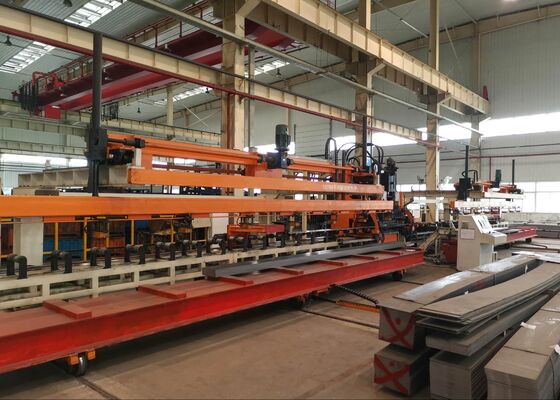

φ60mm Punching Diameter Automobile Longitudinal Beam Flat Plate CNC Punching Line 25pcs Modules
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
φ60mm Punching Diameter Automobile Longitudinal Beam Flat Plate CNC Punching Line 25pcs Modules
Application:
This machine is a special equipment for punching holes in flat longitudinal beams in the automotive industry.
Structural composition:
This machine is mainly composed of automatic loading and unloading device, centering device for automatic compensation of variable-section plates, feeding device, punching unit, automatic waste output device, and hydraulic, electrical, and pneumatic systems.
Main technical parameters:
| No. | Name | Value |
| 1 | Nominal force | 1200KN |
| 2 | Processing plate size and range | |
| 3 | Length | 4000～8000mm |
| Width | 200～550mm | |
| Thickness | 3～6mm | |
| Incoming sheet material sickle bending | ≤7mm/10m | |
| X-axis sheet unevenness | ≤10mm/1000mm ,≤20mm/8000mm | |
| Y-axis sheet unevenness | 5mm | |
| Sheet warping | ≤50mm | |
| Sheet material mechanical properties | σb=510～850N/mm2 | |
| 4 | Max. Punching diameter | φ60mm (The max punching force shall not exceed the nominal force of the machine tool) |
| 5 | Number of modules | 25Pcs |
| 6 | Max. speed | |
| X-axis | Max=50m/min | |
| Y-axis | Max=30m/min | |
| 7 | Processing accuracy | |
| X-axis | ±0.25/600mm ,±0.50 / 3000mm,±0.7 / 8000 mm | |
| Y-axis | ±0.2 mm / 600 mm | |
| 8 | Processing method | Filtering type |
| 9 | Benchmark | The X-axis is along the length of the plate, and the X-coordinate of the hole is based on the end of the sheet metal. The width direction of the sheet material is the Y-axis, with the center line as the reference. |
| 11 | Working mode | Manual, automatic |
| 12 | Trolley load capacity | 20T |
Product features:
1. The control system adopts SIEMENS 828D CNC system, servo motor feeding, high working efficiency, stable workpiece precision.
2. The servo center centering device is installed on the feeding support roller, which can meet the processing of variable cross-section plates with a drop of 0-200mm.
3. 25 molds with different diameters can be installed, and the installation is quick and convenient.
4. The uploading, punching and downloading of the plate are completed automatically, thereby reducing the work intensity.
5. Automatic output and collection of waste.
6. The automatic programming software can directly call the graphics of AUTOCAD or the graphics in .DXF format generated by other CAD software, and complete the automatic generation of machine tool processing programs through a friendly human-machine interface, saving time and without errors.
The exhibition features a curated collection of completed longitudinal beam samples produced by this production line, representing various specifications utilized in mining trucks and specialized vehicles. These samples effectively highlight the precision of hole positioning, the smoothness of punched edges, and the overall structural integrity, allowing clients and inspectors to visually assess the machining capabilities of the equipment.
This machine is a specialized piece of equipment specifically designed for punching operations on flat longitudinal beams within the automotive sector. It is primarily intended for processing the main beams of trucks and specialized vehicles, ensuring precise hole formation to fulfill the structural assembly requirements of these heavy-duty, custom-designed automotive load-bearing components.
