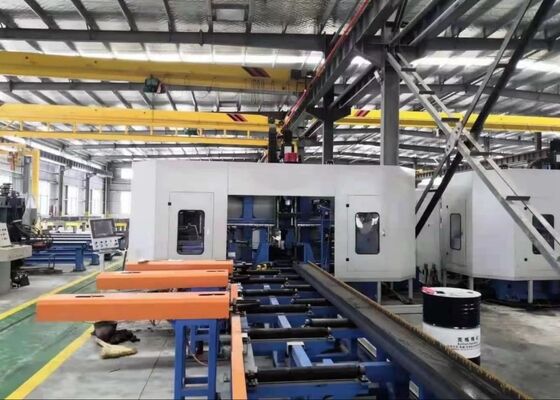

60KW Total Power CNC 3D Beam Drilling Machine Line For Bridge Construction
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
60KW CNC beam drilling machine
,3D beam drilling machine for bridge construction
,CNC beam drilling machine with high power
60KW Total Power CNC 3D Beam Drilling Machine Line For Bridge Construction
Product Introduction:
The CNC 3D drilling machine is equipped with three independent drilling units: vertical, left, and right drilling heads. Each of these drilling units is powered by two CNC axis drives and a digital hydraulic feed system, which operates perpendicular to the workpiece direction. The drill bit is connected to the main spindle via a quick-change drill sleeve, enabling fast and precise bit replacement. Each drilling unit operates autonomously, allowing for simultaneous execution of drilling tasks. Upon successful automatic clamping, all holes in the designated hole pattern can be processed in a single operation.
Product Parameters:
| Model | BHD1000/3 |
| H Beam width range (mm) | 100~1000 |
| H Beam height range (mm) | 100~500 |
| Channel steel width range (mm) | 100~1000 |
| Channel steel height range (mm) | 100~250 |
| Max. workpiece thickness (mm) | 80 |
| Max. workpiece length (m) | 12 or 15 (optional) |
| Drilling spindle qty. | Total 3 spindles, one spindle on the upper unit, left side and right side respectively |
| Spindle hole taper | BT40 |
| Max.drilling diameter (mm) | 40 |
| Spindle motor power (kW) | 11/15 |
| Spindle speed (r/min) | 100~3000 |
| Spindle feeding speed (m/min) | 0~10 |
| X-axis feeding speed (m/min) | 0~20 |
| Qty of tool magazine | 3 |
| Tool magazine type and capacity | Row type, 3x4 (optional) |
| Marking unit (optional) | Disc typing, 36 characters, character size Φ10mm |
| CNC system | German, Japan, China INVT |
| Cooling method | Spray cooling, internal cooling + external cooling |
| Machine Overall Size (m) | About 33x5.5x3.5 |
| Total Power(kW) | About 60 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Product Features:
1. The machine is equipped with three independent drilling stations, allowing multiple holes to be processed simultaneously. Each station is fitted with an independently controlled drilling spindle head, ensuring superior machining efficiency and accuracy.
2. Manual input of workpiece thickness and drill length is not required. Through intelligent sensing technology, the system automatically adjusts the feed rate and drilling parameters, delivering efficient and reliable machining performance.
3. The machine frame is fabricated from heavy-duty welded steel plates and square-section structural beams that undergo stress-relief treatment. The robust construction, combined with roller-guided spindle support mechanisms, provides exceptional stability during operation and ensures high-precision machining results.
4. The system supports automatic import and interpretation of AUTOCAD drawings and data files generated by lofting software, including DXF, NC1, and other commonly used formats, facilitating seamless production integration.
5. An automatic centralized lubrication system and a dedicated electrical cabinet air-conditioning unit are incorporated to enhance equipment reliability, extend component service life, and maintain stable operating conditions.
6. The machine is equipped with an automatic material feeding system capable of automatically clamping, positioning, and advancing workpieces, significantly reducing manual intervention and improving production efficiency.
7. The PLC-based control system operates within a WINDOWS environment, offering intuitive programming, rapid data processing, and graphical simulation capabilities for convenient operation and monitoring.
8. Each drilling unit is powered by high-performance spindle motors sourced from internationally recognized manufacturers, ensuring reliable operation, high productivity, and consistent machining quality.
9. All major mechanical, hydraulic, and electrical components are supplied by reputable global brands, ensuring outstanding quality, operational stability, and long-term service reliability.
During equipment demonstration sessions, the CNC H-beam drilling, marking, and shearing machine effectively exhibits its machining capabilities through the processing of standard H-beam specimens with various flange widths and web thicknesses, as well as channel steel samples of different dimensions. These demonstration workpieces clearly highlight the machine’s ability to achieve accurate hole positioning, high-quality thread tapping, and distinct marking results, providing compelling evidence of its exceptional precision, consistency, and operational reliability in real-world manufacturing environments.
The High-Speed CNC H-Beam Drilling, Marking, and Shearing Machine is extensively utilized in structural steel fabrication facilities and bridge engineering projects. Within steel structure workshops, it performs high-precision machining of H-beams used in structural frameworks and support assemblies, establishing a dependable foundation for accurate fabrication and installation. In bridge construction applications, the equipment delivers precise drilling operations on H-beam components, strengthening structural integrity and enhancing long-term load-bearing performance. With its outstanding productivity, precision, and reliability, the machine provides essential support for critical infrastructure projects, contributing to efficient project execution and successful project delivery.
