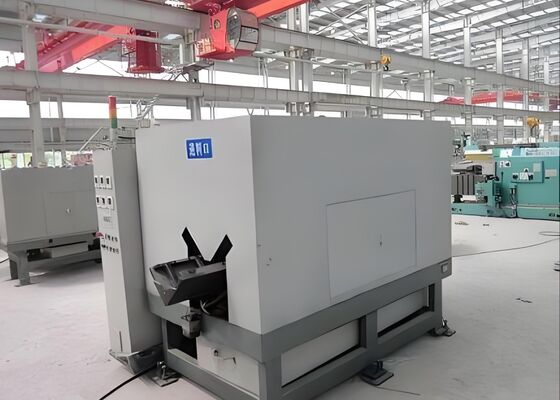

100~570mm/Min Feeding Speed Angle Root Milling Machine Model GQ200
| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
angle root milling machine with warranty
,CNC angle punching machine GQ200
,high-speed angle milling machine 570mm
100~570mm/Min Feeding Speed Angle Root Milling Machine Model GQ200
Application Industry:
Mainly used to process the inner arc of angle steel.
Product Parameter Configuration:
| Model | GQ200 |
| Angle processing size (mm) | L63x5~L200x20 |
| Feeding speed (mm/min) | 100~570 |
| Processing length (mm) | Min.350 |
| Qty. of spindle | 1 |
| Qty. of feeding motor | 2 |
| Rotation of spindle (r/min) | 100~400 |
| Pressure of cylinder (kN) | 60 |
| Weight (ton) | About 2 |
| Overall size(m) | About 1.8x1.4x2 |
Equipment usage instructions and Characteristics:
1. The device uses high-speed milling for back and root of angle grinding processing technology.
2. Greatly improving the root-cleaning production efficiency, ten times efficient than the traditional planer.
3. Easily operate, low requirement for the worker’s operation level.
4. Greatly reducing the labor intensity, high degree of automatic machinery, it can continuously feed angle.
5. Compared with traditional planer which length of processing is restricted, the new machine makes the process more flexible. It is not necessary to use clamping device to make the process more convenience and more efficient.
6. The machine is easy to operate, flexible regulation and stable operation.
Workpiece process
1. Bring angle iron into the machine.
2. In automatic mode, press the cycle start button, the device automatically.
3. The same specifications of the cutting Angle can be continuous.
Configurations:
1. Continuous feeding device adopts gear motor, greatly improve the working efficiency.
2. Electrical components are brand of Schneider and Omron, high quality, performance stable.
3. Using two spindles, reduce the number of each cutter cutting quantity, improve the service life of cutting tools.
4. Main shaft adopts two 3kw motors and the application of synchronous belt to damping, the device is stable and reliable.
5. Using cutting liquid cooling to improve the service life of cutter blades.
