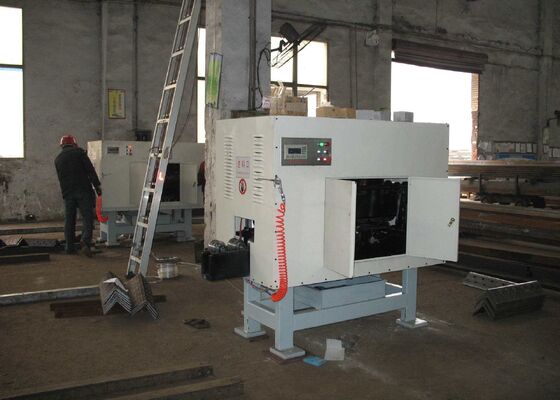

Electric Power Fitting Manufacturing Use CNC Angle Steel Back Milling Machine Model QC200
Application Industry:
The machine is designed for angle back milling applications and is widely utilized in the angle steel tower industry, electric power fitting manufacturing, and steel structure construction sectors, among other industrial fields.
Product Parameter Configuration:
| Model | QC200 |
| Angle processing size (mm) | 63x5~200x20 |
| Feeding speed (mm/min) | 100~700 |
| Processing length (mm) | Min.350 |
| Qty. of spindle | 2 |
| Qty. of feeding motor | 2 |
| Rotation of spindle (r/min) | 288 |
| Pressure of cylinder (kN) | 60 |
| Total power (kW) | 7.5 |
| Weight (ton) | About 2.3 |
| Overall size (m) | About 2.2x1.5x1.6 |
Product Features:
1. Equipped with an automatic continuous feeding system and unrestricted processing length, significantly improving production efficiency while minimizing manufacturing costs.
2. Adopts a PLC-based control system capable of providing real-time operational data and status monitoring, ensuring convenient and efficient operation.
3. NC program control and parameter adjustment ensure high machining precision of the workpiece.
4. Features a hydraulic material clamping system that enables stable operation and maintains consistent processing accuracy of the workpiece.
5. Designed for easy and efficient operation, offering reliable performance, operational safety, and high production capacity.
Workpiece process:
1. Adjust the depth of back-off, turn on the hand wheel, according to different sizes of angle steel, adjust it yourself, lock it.
2. Press the spindle start button to start the back-off spindle.
3. Press the spindle feeding button to start feeding.
4. Put the angle steel on the feeding rack, which is driven by the stick of the rack, automatically feeding and production.
5. After the production, the end product will be automatically sent out of the feed frame.
The machine is specifically engineered for angle back milling operations, delivering precise and highly efficient processing of angle steel components. The resulting products feature smooth surface finishes, exact dimensional accuracy, and well-defined edge profiles, making them ideal for structural fabrication and a wide range of industrial applications. Sample workpieces produced by this equipment clearly demonstrate its outstanding machining precision, consistent quality, and capability to execute complex back-milling operations, providing customers with a reliable reference for assessing the machine’s performance and production suitability.
