Power Hardware Industry Use CNC Punching Marking Cutting Machine Model JBC1010
| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Power Hardware Industry Use CNC Punching Marking Cutting Machine Model JBC1010
Product Introduction:
It is used for punching, marking and shearing on angle steel, flat steel and channel steel. It is mainly used for processing cross-arms, hoops, five-hole connecting plates, flat pads, and benches in electric power tower iron accessories. The machine can be used for punching, shearing and typing in one step without separate processing. High processing precision, high production efficiency, and can be processed by one person, simple and easy to learn.
Product parameters:
| Model | JBC1010 |
| Functions | Punching, marking, shearing |
| Angle size (mm) |
40х40х3～100х100х8 (slotted hole) 40х40х3～100х100х10 (round hole) |
| Flat steel size (mm) | 40x3~140x10 |
| Channel steel (mm) | 80x5~140x8 |
| Max. hole diameter (mm) | Φ22х50 (slotted hole), Φ26 (round hole) |
| Punching force (kN) | 800 |
| Marking force (kN) | 630 |
| Cutting force (kN) | 1250 |
| Max. length of blank (m) | 9 |
| Max. length of finished (m) | 9 |
| Punches per side | 3 |
| Group of Marking letters | 4 |
| Dimension of letter (mm) | 14×10×19 |
| CNC axes | 3 |
| Cutting mode | Single blade cutting |
| Feeding speed of angle (m/min) | 80 |
| Processing precision | Accordance with GB2694 |
| Program function | Real time fault display |
| Programming mode | Input by keyboard, RS232 interface,floppy disk and USB interface |
Product Feature:

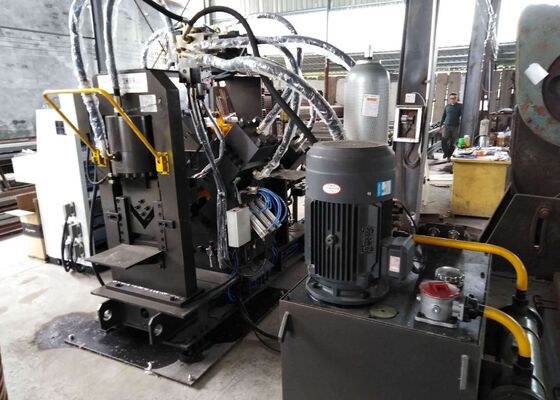

1.This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
2.Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts are all world famous brand.
3.All main cable, such as rotary encoder cable, PLC communication cable is shielding twisted-pair cable imported. Thus, it avoids accuracy error caused by signal interference.
4.Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.
5.The angle line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.
6.The front and rear loading unit has been completely improved, and the new structure combining the guide rail and the spring is adopted. The structure is more reasonable and practical, avoid the defects that the spring of the material can not afford.
7.With function of self-diagnosis for failures.
8.Single blade shearing ensures smooth shearing section and save raw material.
This equipment is designed for versatile CNC processing of structural steel components, including the web surfaces of channel steel, both flanges of angle steel, and flat steel sections, which can also be shaped into curved or arched profiles. It is capable of performing a range of operations on these materials, such as precision marking, accurate punching, and high-quality shearing, providing comprehensive processing capabilities in a single setup. By supporting these diverse functions, the machine ensures efficient and precise fabrication of angle steel, flat steel, and channel steel components, making it ideal for producing custom structural parts, prototypes, and sample pieces with consistent quality and dimensional accuracy.
This machine is primarily designed for hole punching and length cutting of angle steel. The machine's positioning and feeding are fully driven by servo motors. It is predominantly utilized in industries such as telecommunication towers, solar mounting systems, warehouse storage, granaries, scaffolding, and the automotive sector.
