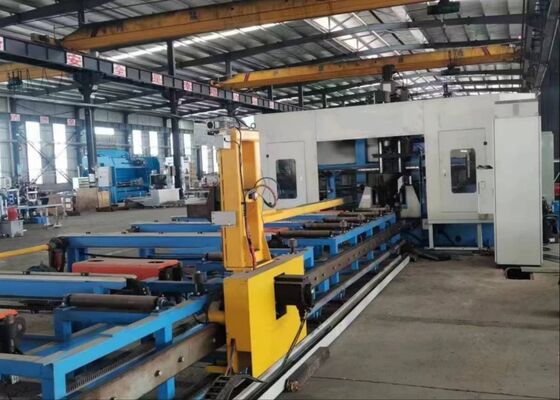

Space Frame Structure CNC I Beam Drilling Machine Prefabricated Steel Buildings
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Space Frame Structure CNC I Beam Drilling Machine Prefabricated Steel Buildings
Product Introduction:
The CNC 3D drilling machine is equipped with three independent drilling units: vertical, left, and right drilling heads. Each of these drilling units is powered by two CNC axis drives and a digital hydraulic feed system, which operates perpendicular to the workpiece direction. The drill bit is connected to the main spindle via a quick-change drill sleeve, enabling fast and precise bit replacement. Each drilling unit operates autonomously, allowing for simultaneous execution of drilling tasks. Upon successful automatic clamping, all holes in the designated hole pattern can be processed in a single operation.
Product Parameters:
| Model | BHD1000/3 |
| H Beam width range (mm) | 100~1000 |
| H Beam height range (mm) | 100~500 |
| Channel steel width range (mm) | 100~1000 |
| Channel steel height range (mm) | 100~250 |
| Max. workpiece thickness (mm) | 80 |
| Max. workpiece length (m) | 12 or 15 (optional) |
| Drilling spindle qty. | Total 3 spindles, one spindle on the upper unit, left side and right side respectively |
| Spindle hole taper | BT40 |
| Max.drilling diameter (mm) | 40 |
| Spindle motor power (kW) | 11/15 |
| Spindle speed (r/min) | 100~3000 |
| Spindle feeding speed (m/min) | 0~10 |
| X-axis feeding speed (m/min) | 0~20 |
| Qty of tool magazine | 3 |
| Tool magazine type and capacity | Row type, 3x4 (optional) |
| Marking unit (optional) | Disc typing, 36 characters, character size Φ10mm |
| CNC system | German Siemens, Japan Panasonic, China INVT |
| Cooling method | Spray cooling, internal cooling + external cooling |
| Machine Overall Size (m) | About 33x5.5x3.5 |
| Total Power(kW) | About 60 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Product Features:
1. The machine is equipped with three independent drilling units, enabling simultaneous drilling of holes. Each unit utilizes a self-controlled stroke drilling head for optimal performance.
2. There is no need to manually configure the workpiece thickness or drill bit length. The machine automatically adjusts feeding or performs automatic feeding based on sensor signals, ensuring high efficiency.
3. The frame is constructed from robust electro-welded and normalized plates and square beams. The structure, featuring roller guides that support the three spindles on the sliders, ensures complete stability during movement and guarantees precise operation.
4. This machine is capable of automatically reading AUTOCAD drawings and files from lofting software, including formats such as DXF and NC1.
5. The machine is fitted with an automatic lubrication system and an air conditioning unit for the electrical cabinet.
6. It is equipped with an automatic feeding system, which automatically clamps and feeds the material into the machine.
7. The PLC system operates with programming based on WINDOWS, offering fast and convenient programming capabilities along with visual preview functionality.
8. The drilling units are equipped with high-quality spindle motors from renowned brands
.
9. All critical mechanical, hydraulic, and electrical components are sourced from well-established, reputable brands.
During sample demonstration sessions, the CNC beam plate metal drilling, marking, and shearing machine effectively showcases its processing capabilities using standard H-beam samples (featuring varying flange widths and web thicknesses), as well as channel steel samples of different sizes. The demonstrated samples clearly illustrate the machine's ability to deliver precise hole positioning, smooth threaded tapping, and clear marking patterns, thereby providing a comprehensive demonstration of its high accuracy and reliability in practical operational environments.
The High-Speed CNC H-Beam Drilling, Marking, and Shearing Machine is primarily employed in steel structure fabrication facilities and bridge construction projects. In steel structure workshops, it ensures highly accurate processing of H-beams used in frames and support structures, providing a solid foundation for the stable assembly of steel frameworks. In bridge construction, it performs precise drilling operations on H-beams, enhancing the structural integrity of bridges and enabling them to effectively withstand long-term loads. With its outstanding operational efficiency, the machine delivers reliable support to these essential infrastructure sectors, facilitating the smooth progression of associated projects.
