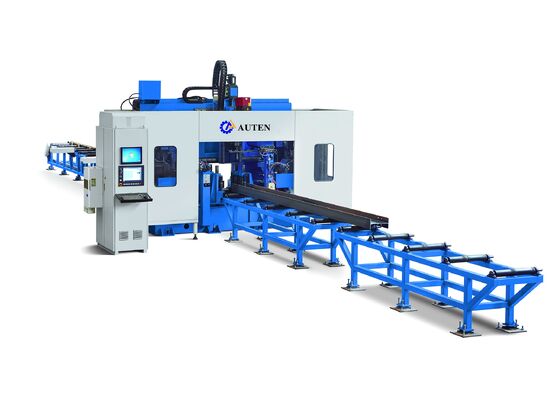

Communication Tower Fabrication CNC Steel Structure Beam Drilling Line Space Frame Structure
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Communication Tower Fabrication CNC Steel Structure Beam Drilling Line Space Frame Structure
Product Introduction:
The CNC 3D drilling machine has three independent drilling power heads, namely vertical, left and right drilling heads. Each drilling power head contains two CNC axis drives and a digital hydraulic feed drive perpendicular to the workpiece direction. The drill bit and the main shaft are connected by a quick-change drill sleeve, so that the drill bit can be replaced quickly and accurately. Each drill bit can be independent and can complete the drilling operation at the same time. After a successful automatic clamping, all holes in the hole group can be processed.
Product Parameters:
| Model | BHD1000/3 |
| H Beam width range (mm) | 100~1000 |
| H Beam height range (mm) | 100~500 |
| Channel steel width range (mm) | 100~1000 |
| Channel steel height range (mm) | 100~250 |
| Max. workpiece thickness (mm) | 80 |
| Max. workpiece length (m) | 12 or 15 (optional) |
| Drilling spindle qty. | Total 3 spindles, one spindle on the upper unit, left side and right side respectively |
| Spindle hole taper | BT40 |
| Max.drilling diameter (mm) | 40 |
| Spindle motor power (kW) | 11/15 |
| Spindle speed (r/min) | 100~3000 |
| Spindle feeding speed (m/min) | 0~10 |
| X-axis feeding speed (m/min) | 0~20 |
| Qty of tool magazine | 3 |
| Tool magazine type and capacity | Row type, 3x4 (optional) |
| Marking unit (optional) | Disc typing, 36 characters, character size Φ10mm |
| CNC system | German Siemens, Japan Panasonic, China INVT |
| Cooling method | Spray cooling, internal cooling + external cooling |
| Machine Overall Size (m) | About 33x5.5x3.5 |
| Total Power(kW) | About 60 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Product Features:
1. Equipped with three drilling units, three drilling units can drill holes simultaneously and adopt self-controlled stroke drilling head.
2. No need to set thickness of work piece and length of drill bits, it will do fact-feeding or feeding automatically by sensor signal, and with high efficiency.
3. Frame made of sturdy electro-welded and normalized Plates and Square Beams. The structure with roller guides on which the sliders supporting the three spindles guarantees the total moving stability, and ensures the working precision;
4. This machine can read AUTOCAD drawings and lofting software files automatically, such as DXF, NC1.
5. Equipped with automatic lubrication system and air conditioner for electric cabinet.
6. Equipped with automatic feeding systems, which will clamp and feed material into machine automatically.
7. PLC systems, programming based on WINDOWS, fast and convenient programming, and visual previewing.
8. Drilling units equip with famous brand spindle motor.
9. The key mechanical, hydraulic and electric parts are all famous brands.
During sample demonstration sessions, the CNC beam plate metal drilling, marking, and shearing machine effectively highlights its processing capabilities using standard H-beam samples (with varying flange widths and web thicknesses) as well as channel steel samples of different dimensions. The samples showcased in these demonstrations clearly display the machine’s ability to achieve accurate hole positioning, smooth threaded taps, and distinct marking patterns—thereby thoroughly demonstrating its high precision and dependability in real-world operational contexts.
The High-Speed CNC H-Beam Drilling, Marking, and Shearing Machine is primarily utilized in steel structure fabrication plants and bridge construction projects. In steel structure workshops, it performs highly accurate processing on H-beams used in frames and support structures, ensuring a solid foundation for the stable assembly of steel frameworks. In bridge construction, it conducts precision drilling operations on H-beams, bolstering the structural integrity of bridges and enabling them to effectively bear long-term loads. With its exceptional operational efficiency, the machine offers dependable support to these critical infrastructure sectors, promoting the seamless progress of related projects.
