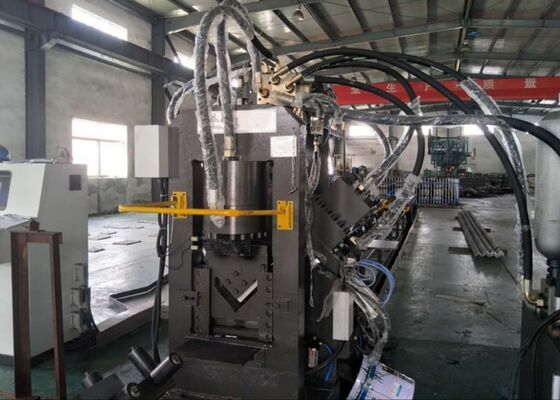

Wind Power Tower Components CNC Angle Punching Shearing Machine Substation Structure Manufacture
| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Wind Power Tower Components CNC Angle Punching Shearing Machine Substation Structure Manufacture
Product Introduction:
The CNC Angle Line is a high-precision, fully automated integrated processing system designed for angle steel marking, punching, drilling, shearing, and cutting. It is extensively utilized in industries such as power transmission towers, communication towers, steel structure fabrication, bridge engineering, and metalworking, replacing manual processes to achieve efficient, precise, and stable batch processing of angle steel.
1. The machine incorporates proprietary software that activates when powered on and ceases when turned off, eliminating the need to return to the origin point upon restarting. This ensures continuous operation, significantly enhancing productivity.
2. In addition to supporting DXF, the machine is compatible with TEKKELA NC format, accommodating diverse production requirements from customers.
3. The probe sensor for the entire production line is reduced by one, resulting in a decreased failure rate and significantly lowering both maintenance and operational costs.
4. It is capable of performing punching, marking, and cutting functions automatically within a single machine.
Product Parameters:
| Model | JNC1010 |
| Angle size (mm) | 40х40х3~100х100х10 |
| Max. Punching (Dia. х Thi.) (mm) | Φ26х10 |
| Punching force (kN) | 630 |
| Marking force (kN) | 630 |
| Cutting force (kN) | 1000 |
| Max. length of blank (m) | 12 |
| Max. length of finished (m) | 8 |
| Punches per side | 2 |
| Group of marking letters | 4 |
| Number of letters per group | 12 |
| Character size(mm) | 14x10x19 |
| CNC axes | 3 |
| Cutting mode | Single Blade |
| Cooling method | Water cooling/Air cooling/Oil chiller |
| Max. feeding speed (m/min) | 80 |
| Programming mode | Lofting software or instruction programming |
| Overall dimension (m) | About 25x6.5x2.5 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Main Features:
1. The machine is professional automatic equipment for marking, punching and shearing in iron tower manufacturing industry.
2. CNC automatic production line offers highpunching speed and high stability.
3. The angle bar can be processed into finished angle in one time as passing through the machine.
4. The machining process is numerically controlled and the operation is very convenient.It can achieve automation,high precision,multi-species and mass production.
5. Friendly computer interface is easy to operate.It can accept certain processing program which is made by lofting softrware.And it also supports manual programming.
Machine Advantages:
1. The machine is composed of transverse conveyor,rotating loading system,infeed conveyor,CNC infeed carriage,marking unit,shearing unit,unloading conveyor as well as hydraulic,electrical and pneumatic system,etc.
2. Veasatile triple tooling on each side which can install three kinds of punches with different diameters.Versatile triple tooling can move together controlled by CNC which is to change the punching stadia.
3. Double-blade shearing ensures perfect cutting section.The clearance can be conveniently adjusted.
4. Marking unit adopts a closed frame with good rigidity.Four sets of character boxes are fixed on the marking unit which can be selected by program.Marking stadia can be at will.
5. The workpiece is infeeded by the CNC carriage with high positioning precision. The infeed carriage is driven by servo motor. The photoelectric encoder feds back the information.Closed loop control. The clamp arm moves up and down with high rigidity. It is driven by ball screw and guided by linear guideway.
6. The support device of the ounching unit is driven up and down by hydraulic cylinder.
7. The rotating loading system is driven by the reducer with high working stability.
8. The hydraulic system mainly serves for punching,shearing,marking,marking device movement,pressing and supporting workpiece,and tansposition of character boxes.The hydraulic pipeline is ferrule connect.
These samples, reflecting the standard specifications and processing standards within the angle steel tower industry, enable users to directly evaluate the equipment's processing quality, accuracy, and craftsmanship standards.
This machine is primarily designed for hole punching and length cutting of angle steel. The machine's positioning and feeding are fully driven by servo motors. It is predominantly utilized in industries such as telecommunication towers, solar mounting systems, warehouse storage, granaries, scaffolding, and the automotive sector.
