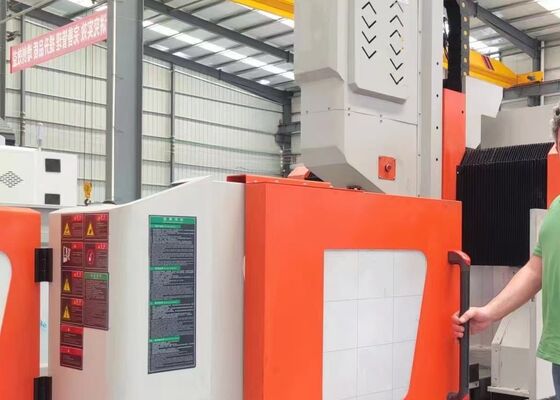

Ring Plate Drilling Machine Heavy Duty CNC Drilling Machine Disc Drilling Machine
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Ring Plate Drilling Machine Heavy Duty CNC Drilling Machine Disc Drilling Machine
Product Introduction:
A CNC gantry milling machine, also known as a gantry milling machine, is distinguished by its portal frame and extended horizontal bed. It is capable of employing multiple milling cutters at once to machine surfaces, ensuring high accuracy and improved production efficiency. This machine is particularly suited for machining both flat and inclined surfaces on large workpieces, especially in batch and mass production settings. Furthermore, it is capable of processing curved surfaces and certain specialized components.
Product parameters:
| Model | PHD2016 | |
| Workpiece size | LxW (mm) | 2000x1600 |
| T-slot width of Workbench (mm) | 28 | |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT50 | |
| Max. drilling diameter (mm) | Φ60 | |
| Max. thickness (mm) | ≤180 | |
| Tapping diameter | M3-M25 | |
| Spindle speed (r/min) | 30~3000 | |
| Servo spindle motor power (kW) | 15/22 | |
| Lateral movement of power head (X axis) | Max. horizontal stroke (mm) | 1600 |
| Lateral movement speed (r/min) | 0~8 | |
| Servo motor power for lateral movement (kW) | 2.4 | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke (mm) | 2000 |
| Feed moving speed (m/min) | 0~8 | |
| Feed servo motor power (kW) | 2.4 | |
| Vertical ram feed motion (Z axis) | Max. stroke (mm) | 400 |
| Moving speed (m/min) | 0~8 | |
| Servo motor power (kW) | 2.4 | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.02/1000 |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.01/1000 |
| Electrical system | CNC system | SIEMENS/ FAGOR/ KND/ GSK |
| Tool changer | Disc type (Optional) | 24 tool positions |
| Overall size | LxWxH (m) | 4.4x3.2x2.7 |
Equipment structure:
The machine mainly consists of a bed, worktable, movable gantry, mobile saddle, drilling and milling power head, automatic lubrication system, protective devices, circulating cooling system, digital control unit, electrical system, and other components. Equipped with rolling guide pair support and a precision lead screw pair drive, the machine ensures outstanding positioning accuracy and repeatability.
Gantry Movable Multi-Spindle CNC Flange Drilling and Milling Machine
1. Machine Frame – Constructed from welded steel, offering a strong structure, enhanced rigidity, and exceptional stability.
2. Worktable – Designed with T-slots to securely clamp tube sheets or flanges.
3. Edge Finder – Includes a handwheel and edge finder for accurate workpiece alignment.
4. Drilling Unit – Precision spindle with high-speed operation, carbide drills, and internal cooling for maximum performance.
5. Lubrication System – Built-in automatic lubrication system for linear guides and ball screws, ensuring seamless operation.
6. Electrical System – CNC control system with intuitive programming and operation, fully compatible with AUTOCAD file formats.
Product Features:
1. Specialized CNC Drilling Machine – Engineered specifically for drilling and tapping holes in thick metal plates.
2. Sturdy Machine Construction – Treated with stress relief and annealing processes to guarantee long-term performance without deformation.
3. Gantry Movement – Provides rapid movement, delivering high cost-efficiency and a compact footprint.
4. Automatic Metal Chip Removal System – Automatically eliminates metal chips, improving operational efficiency.
5. Cooling Liquid Filtration System – Engineered to filter out foreign contaminants from the cooling liquid, ensuring a clean and efficient operation.
6. Cutting Tool Cooling System – Employs a center-out water flow system to cool the cutting tools, flush away metal chips, and enhance tool longevity.
The CNC gantry plate cutting machine represents a state-of-the-art industrial solution, meticulously designed for the precise processing of plate-type components and structural elements. This machine is specifically optimized for handling workpieces such as flanges, discs, rings, and flat plates, provided their thickness falls within the machine's specified effective machining range.
In steel structure fabrication plants, this plate drilling machine delivers precise drilling and milling operations on structural plates and connecting components, providing a solid foundation for the secure assembly of steel frameworks. Within the wind power industry, it ensures high-precision machining of wind turbine towers and flanges—essential processes that guarantee these components can withstand harsh environmental conditions, including strong winds and temperature fluctuations. For bridge construction, the machine processes bridge girders and supports, ensuring the creation of stable and durable connections capable of enduring dynamic loads over the bridge's long-term service life.
