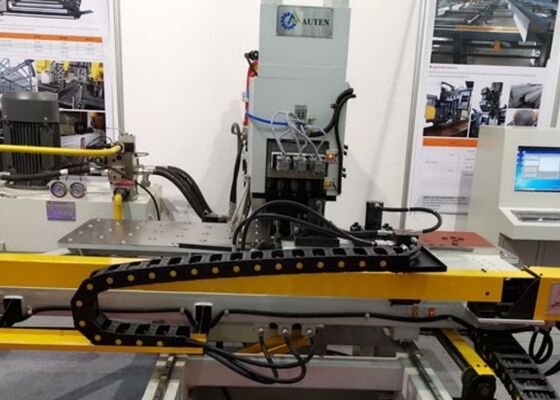

Transmission Tower Manufacture CNC Plate Punching Drilling Machine Steel Structure Fabrication
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Transmission Tower Manufacture CNC Plate Punching Drilling Machine Steel Structure Fabrication
Product Introduction:
The CNC plate punching machine is employed for punching, marking, and drilling steel plates in the production of steel towers. Furthermore, it is widely utilized across various industries for punching, drilling, and marking metal plates.
Product specification:
| Model | BNHD120 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | BT50 | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 0~5000 | |
| Stroke of drilling spindle(mm) | 350 | |
| Rotation speed of drilling spindle(r/min) | 30~3000 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.3*3.2*3 | |
Product Features:
1. The plate marking machine is constructed with a C-type welded plate frame, ensuring superior rigidity and offering an expansive work area. It is equipped with three die stations, one of which is dedicated solely to marking, and features automatic switching between die stations. The clamping system is versatile, accommodating a broad range of workpieces, with a zero baffle used as the reference point. The workpiece is supported by a rolling-ball work table. Movement along the X and Y axes is powered by servo motors and ball screws, while the PLC system governs the punching position, enabling full automation of the machining process. The operator simply inputs the workpiece program, facilitating streamlined execution of repetitive tasks.
2. The steel plate punching machine leverages CNC technology and servo motor-driven feeding, improving operational efficiency and guaranteeing consistent precision in the production of workpieces.
3. The key functional components are designed with a modular structure, enabling easy maintenance and repair.
4. Perform punching, marking, and drilling operations on a single plate.
5. The drilling unit is equipped with features including rapid descent, slow feed during operation, and quick return feeding, all designed to optimize operational efficiency.
6. The programming process is simple, allowing users to input hole diameter, position, and workpiece quantity into the computer. Additionally, it supports programs generated by lofting software or direct CAD/CAM conversion.
7. The system is equipped with a self-diagnostic feature for fault detection.
This CNC plate punching machine is a specialized metalworking solution carefully engineered to perform punching, marking, and drilling operations on steel plates used in the production of steel towers. It delivers exceptional machining precision, adhering to strict tolerance and surface finish requirements. Beyond its primary application in steel tower manufacturing, this versatile machine also provides reliable punching, drilling, and marking capabilities for metal plates across various other industrial sectors. It consistently ensures high operational efficiency and accuracy for a wide range of metal workpieces, streamlining workflows and enhancing product quality in multiple industries.
