Tube Sheet Drilling Machine CNC Plate Drilling Machine Heat Exchanger Plate Drilling Machine
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Tube Sheet Drilling Machine CNC Plate Drilling Machine Heat Exchanger Plate Drilling Machine
Product Introduction:
A CNC gantry milling machine, also referred to as a gantry milling machine, is characterized by its portal frame and extended horizontal bed. It is capable of utilizing multiple milling cutters simultaneously to machine surfaces, thereby ensuring high precision and enhanced production efficiency. This machine is ideal for machining both flat and inclined surfaces on large workpieces, particularly in batch and mass production environments. Additionally, it can process curved surfaces and certain specialized components.
Product parameters:
| Model | PHD2016 | |
| Workpiece size | LxW (mm) | 2000x1600 |
| T-slot width of Workbench (mm) | 28 | |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT50 | |
| Max. drilling diameter (mm) | Φ60 | |
| Max. thickness (mm) | ≤180 | |
| Tapping diameter | M3-M25 | |
| Spindle speed (r/min) | 30~3000 | |
| Servo spindle motor power (kW) | 15/22 | |
| Lateral movement of power head (X axis) | Max. horizontal stroke (mm) | 1600 |
| Lateral movement speed (r/min) | 0~8 | |
| Servo motor power for lateral movement (kW) | 2.4 | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke (mm) | 2000 |
| Feed moving speed (m/min) | 0~8 | |
| Feed servo motor power (kW) | 2.4 | |
| Vertical ram feed motion (Z axis) | Max. stroke (mm) | 400 |
| Moving speed (m/min) | 0~8 | |
| Servo motor power (kW) | 2.4 | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.02/1000 |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.01/1000 |
| Electrical system | CNC system | SIEMENS/ FAGOR/ KND/ GSK |
| Tool changer | Disc type (Optional) | 24 tool positions |
| Overall size | LxWxH (m) | 4.4x3.2x2.7 |

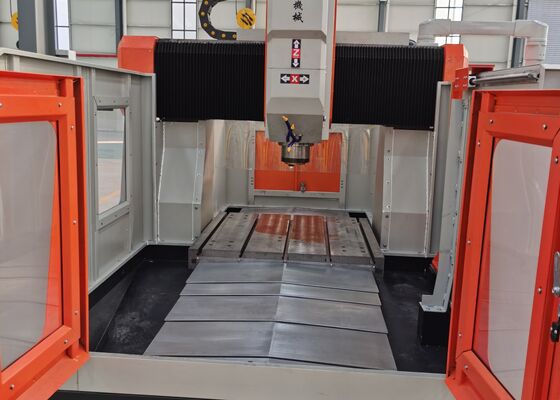

Equipment structure:
The machine primarily comprises a bed, worktable, movable gantry, mobile saddle, drilling and milling power head, automatic lubrication system, protective device, circulating cooling system, digital control unit, electrical system, and other components. Featuring rolling guide pair support and precision lead screw pair drive, the machine offers exceptional positioning accuracy and repeatability.
Gantry Movable Multi-Spindle CNC Flange Drilling and Milling Machine
1. Machine Frame – Welded steel construction, providing robust structure, superior rigidity, and exceptional stability.
2. Worktable – Fitted with T-slots for secure clamping of tube sheets or flanges.
3. Edge Finder – Equipped with a handwheel and edge finder for precise workpiece positioning.
4. Drilling Unit – High-precision spindle, high-speed operation, carbide drills, and internal cooling for optimal performance.
5. Lubrication System – Integrated automatic lubrication system for linear guides and ball screws to ensure smooth operation.
6. Electrical System – CNC control system, user-friendly programming and operation, with compatibility for reading AUTOCAD files.
Product Features:
1. Professional CNC Drilling Machine – Designed specifically for drilling and tapping holes in thick metal plates.
2. Robust Machine Structure – Featuring stress-relieved and annealed treatment, ensuring long-term use without deformation.
3. Gantry Movement – Enables faster movement, offering high cost-efficiency and compact dimensions.
4. Automatic Metal Chip Removal System – Automatically removes metal chips, enhancing operational efficiency.
5. Cooling Liquid Filtration System – Designed to filter foreign contaminants present in the cooling liquid, ensuring clean and effective operation.
6. Cutting Tool Cooling System – Utilizes a center-out water flow mechanism to cool the cutting tools, flush metal chips, and extend tool life.
The CNC gantry plate cutting machine embodies a cutting-edge industrial solution, carefully engineered for the accurate processing of plate-shaped components and structural parts. This machine is specifically tailored for handling workpieces such as flanges, discs, rings, and flat plates, as long as their thickness falls within the machine's designated effective machining range.
In steel structure fabrication facilities, this plate drilling machine performs precise drilling and milling operations on structural plates and connecting elements, providing a reliable foundation for the secure assembly of steel frameworks. In the wind power sector, it offers high-precision machining for wind turbine towers and flanges—critical processes that ensure these components can withstand challenging environmental conditions, such as strong winds and temperature variations. For bridge construction, the machine processes bridge girders and supports, ensuring the formation of stable and durable connections capable of enduring dynamic loads throughout the bridge's extended service life.
