Power Transmission Line Tower CNC Angle Production Line Electrical Power Infrastructure
Product Introduction:
The JNC series Angle Punching, Marking, and Shearing Machine is a fully integrated processing solution for punching, marking, and cutting angle profile bars, controlled by CNC and PC programming. The positioning and feeding functions of the machine are powered by servo motors, ensuring high efficiency and precision. It utilizes a rack-and-gear drive system for CNC carriage feeding, offering both high performance and accuracy. Widely utilized in the steel construction and tower industries, this machine allows all holes on the angle steel to be drilled in a single pass, delivering excellent hole quality and positional accuracy. It is a specialized machine designed for fully automated production.
Product parameters:
| Model | JNC1412 |
| Angle size (mm) | 40х40х3~140х140х12 |
| Max. Punching (Dia. х Thi.) (mm) | Φ26х12 |
| Punching force (kN) | 630/1000 |
| Marking force (kN) | 630/1000 |
| Cutting force (kN) | 2000 |
| Max. length of blank (m) | 12 |
| Max. length of finished (m) | 8 |
| Punches per side | 2 or 3 |
| Group of marking letters | 4 |
| Number of letters per group | 12/8 |
| Character size(mm) | 14x10x19 |
| CNC axes | 3 |
| Cutting mode | Single Blade |
| Cooling method | Water cooling/Air cooling/Oil chiller |
| Max. feeding speed (m/min) | 80 |
| Programming mode | Lofting software or instruction programming |
| Overall dimension (m) | About 25x6.5x2.5 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Product Composition:

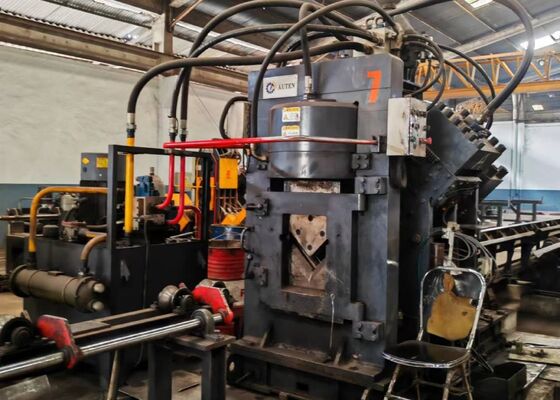

This machine is primarily composed of a transverse conveyor, a rotating loading system, an infeed conveyor, a CNC infeed carriage, a punching unit, a marking unit, a cutting unit, an unloading conveyor, as well as hydraulic, electrical, and pneumatic systems, among other essential components.
Product Features:
1. The machine is an integrated system combining mechanical, electrical, and hydraulic components.
2. Each of the two wings of the angle steel is equipped with a drilling power head. Each power head includes a tool magazine, which can hold up to four tools. The tool magazine is optional. All holes on both wings of the angle steel can be processed in a single pass.
3. The drilling spindle utilizes a high-precision BT40 spindle.
4. The drilling spindle is capable of clamping both twist drills and carbide drills, offering a broad range of applications.
5. The quasi-distance can be set freely, and there is no limitation on the number of punching rows.
6. The marking unit features a closed-bed structure, ensuring excellent rigidity. The upper marking box allows for four groups of selectable programming, with the marking distance being fully adjustable.
7. The control system comprises a host computer, servo motor, PLC, external detection sensors, and other essential components.
8. The CNC feeding carriage is powered by a servo motor, ensuring high positioning accuracy.
9. Multiple input methods are available, including keyboard and mouse input, USB interface, and network interface. The data can be directly generated by 3D or 2D software.
10. The primary electrical control components, as well as the hydraulic and pneumatic components, are sourced from imported high-quality accessories.
11. The system includes G-code software that can directly convert CAD drawings into executable machine instructions.
12. A graphical display of the processed parts is provided.
13. The machine is equipped with a self-diagnosis function for fault detection.
These samples, which represent the standard specifications and processing criteria within the angle steel tower industry, allow users to directly assess the equipment’s processing quality, accuracy, and craftsmanship standards.
In the construction of ultra-high voltage (UHV) transmission lines, where towers must withstand extreme weather conditions and heavy loads, this equipment is essential for processing the angle steel components that form the core structure of the towers. It consistently performs drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other critical structural elements. This guarantees precise dimensional accuracy and strong, secure connections, ensuring the overall stability and dependability of the towers.
