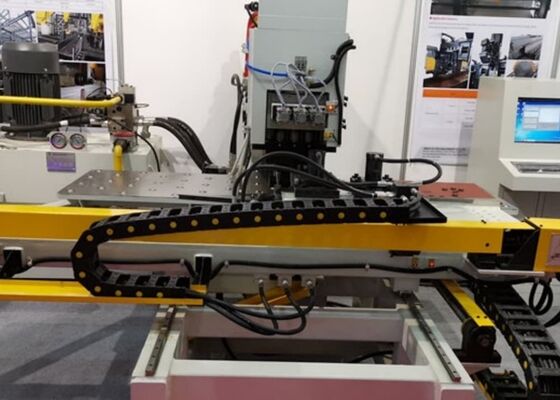

Hydraulic CNC Plate Punching Marking And Drilling Machine For Steel Structure
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Hydraulic CNC Plate Punching Marking And Drilling Machine For Steel Structure
Product Introduction:
The CNC plate punching machine is employed for the punching, marking, and drilling of steel plates in the production of steel towers. Furthermore, it finds widespread application in multiple industries for punching, drilling, and marking metal plates.
Product specification:
| Model | BNHD120 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | BT50 | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 0~5000 | |
| Stroke of drilling spindle(mm) | 350 | |
| Rotation speed of drilling spindle(r/min) | 30~3000 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.3*3.2*3 | |
Product Features:
1. The plate marking machine is constructed with a C-type welded plate frame, ensuring superior rigidity and offering an expansive work area. It is equipped with three die stations, one of which is specifically designated for marking, and incorporates automatic die station switching. The clamping system is versatile, accommodating a broad range of workpieces, with a zero baffle serving as the reference point. The workpiece is supported by a rolling-ball worktable. Movement along the X and Y axes is driven by servo motors and ball screws, while the PLC system governs the punching position, facilitating full automation of the machining process. The operator simply inputs the workpiece program, optimizing repetitive tasks.
2. The steel plate punching machine leverages CNC technology and servo motor-driven feeding, improving operational efficiency and guaranteeing precise consistency in the production of workpieces.
3. The main functional components are engineered with a modular design, allowing for easy maintenance and repair procedures.
4. Perform punching, marking, and drilling operations on a single plate.
5. The drilling unit is equipped with functionalities including rapid descent, slow feed during operation, and quick return feeding, all designed to enhance operational efficiency.
6. The programming process is simple, allowing users to input hole diameter, position, and workpiece quantity into the system. Additionally, it supports programs generated by lofting software or direct CAD/CAM conversion.
7. The system features a self-diagnostic function for efficient fault detection.
This CNC plate punching machine is a specialized metalworking solution meticulously engineered to perform punching, marking, and drilling operations on steel plates utilized in the production of steel towers. It delivers exceptional machining precision, meeting rigorous tolerance and surface finish requirements. Beyond its primary application in the steel tower manufacturing industry, this adaptable machine provides dependable punching, drilling, and marking capabilities for metal plates across various other industrial sectors. It consistently ensures high operational efficiency and accuracy for a wide range of metal workpieces, streamlining workflows and enhancing product quality across diverse industries.
