1600mm Horizontal Stroke Tube Sheet Processing Steel Profile Cnc Plate Drilling Machine
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |

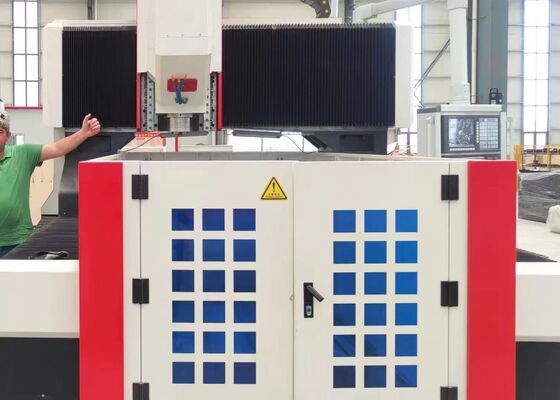

1600mm Horizontal Stroke Tube Sheet Processing Steel Profile Cnc Plate Drilling Machine
Product Introduction:
A CNC gantry milling machine, also known as a gantry milling machine, is a milling machine with a portal frame and a long horizontal bed. Multiple milling cutters can be used simultaneously to machine surfaces, achieving high precision and production efficiency. This machine is suitable for machining flat and inclined surfaces on large workpieces in batch and mass production. It can also process curved surfaces and some special-shaped parts.
Product parameters:
| Model | PHD2016 | |
| Workpiece size | LxW (mm) | 2000x1600 |
| T-slot width of Workbench (mm) | 28 | |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT50 | |
| Max. drilling diameter (mm) | Φ60 | |
| Max. thickness (mm) | ≤180 | |
| Tapping diameter | M3-M25 | |
| Spindle speed (r/min) | 30~3000 | |
| Servo spindle motor power (kW) | 15/22 | |
| Lateral movement of power head (X axis) | Max. horizontal stroke (mm) | 1600 |
| Lateral movement speed (r/min) | 0~8 | |
| Servo motor power for lateral movement (kW) | 2.4 | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke (mm) | 2000 |
| Feed moving speed (m/min) | 0~8 | |
| Feed servo motor power (kW) | 2.4 | |
| Vertical ram feed motion (Z axis) | Max. stroke (mm) | 400 |
| Moving speed (m/min) | 0~8 | |
| Servo motor power (kW) | 2.4 | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.02/1000 |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C (mm) | ±0.01/1000 |
| Electrical system | CNC system | SIEMENS/ FAGOR/ KND/ GSK |
| Tool changer | Disc type (Optional) | 24 tool positions |
| Overall size | LxWxH (m) | 4.4x3.2x2.7 |
Equipment structure:
It mainly consists of a bed worktable, a mobile gantry, a mobile slide saddle, a drilling and milling power head, an automatic lubrication device and a protective device, a circulating cooling device, a digital control system, an electrical system, etc. With rolling guide pair support and guidance and precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.
Gantry Movable Multi Spindles CNC Flange Drilling And Milling Machine
1. Machine Body- Welded by iron, Strong Structure, High rigidity & High Stability
2. Worktable- With T-slot for clamping the tube sheet or flange
3. Edge Finder-Equip hand wheel and edge finder to find the position of workpiece
4. Drilling Unit-Precision Spindle, High Speed, Carbide Drill, Inner Cooling
5. Lubrication System-Equip auto lubrication device for linear guide & ball screw
6. Electric System- CNC,Easy Programming & Operate, Read AUTOCAD Files
Product Features:
1. Professional CNC drilling machine for drilling holes and tapping on thick metal plates
2. Heavy-duty machine structure, it has been agend and annealed treatment, can be used for long time without deforming
3.Gantry movement,move more fast, highly cost effective, small oversize
4.Auto Metal chips removal system, it can remove the metal chips automatically.
5.Filter system for cooling liquid, it can filtration the foreign substance contained in the cooling liquid
6.Cooling system for cutting tools adopt the center out of water, it can cool the cutting tool,wash out metal chips and increase the life for cutting tool.
The CNC gantry plate cutting machine represents a state-of-the-art industrial solution, meticulously designed for the precise processing of plate-like components and structural elements. This equipment is specifically optimized for handling workpieces such as flanges, discs, rings, and flat plates, provided their thickness is within the machine's specified effective machining capacity.
In steel structure fabrication facilities, this plate drilling machine executes precise drilling and milling operations on structural plates and connecting components, establishing a solid foundation for the reliable assembly of steel frameworks. Within the wind power industry, it delivers high-precision machining for wind turbine towers and flanges—critical operations that ensure these components are capable of withstanding harsh environmental conditions (e.g., strong winds, temperature fluctuations). For bridge construction projects, the equipment processes bridge girders and supports, ensuring the creation of stable and durable connections that can endure dynamic loads throughout the bridge's extended operational lifespan.
