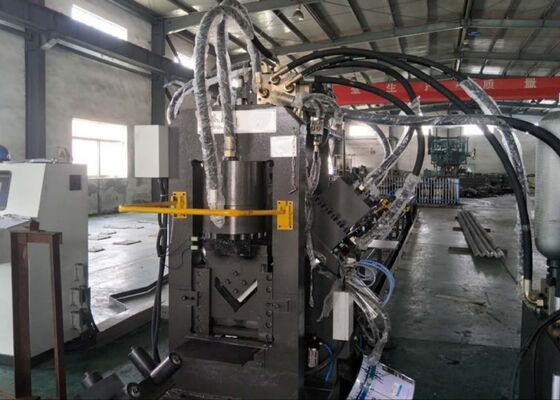

Model JNC1412 CNC Angle Steel Punching Cutting Marking Machine Single Blade Single Blade
| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | Wooden case |
| Delivery Period: | 60 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
Model JNC1412 CNC Angle Steel Punching Cutting Marking Machine Single Blade Single Blade
Product Introduction:
JNC series high speed cnc angle punching, marking and cutting production line is mainly composed of punching unit, marking unit, cutting unit, transverse conveyor, rotating conveyor, feeding conveyor, unloading conveyor, CNC feeding carriage, hydraulic system, electrical system, pneumatic system and so on. This production line is mainly used for the automatic processing of angle steel in tower industry. The processing process is numerically-controlled and the operation is very convenient. It can realize the automatic, high-precision, multi-varieties and mass production.
Product parameters:
| Model | JNC1412 |
| Angle size (mm) | 40х40х3~140х140х12 |
| Max. Punching (Dia. х Thi.) (mm) | Φ26х12 |
| Punching force (kN) | 630/1000 |
| Marking force (kN) | 630/1000 |
| Cutting force (kN) | 2000 |
| Max. length of blank (m) | 12 |
| Max. length of finished (m) | 8 |
| Punches per side | 2 or 3 |
| Group of marking letters | 4 |
| Number of letters per group | 12/8 |
| Character size(mm) | 14x10x19 |
| CNC axes | 3 |
| Cutting mode | Single Blade |
| Cooling method | Water cooling/Air cooling/Oil chiller |
| Max. feeding speed (m/min) | 80 |
| Programming mode | Lofting software or instruction programming |
| Overall dimension (m) | About 25x6.5x2.5 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Product Features:
1. The cnc angle iron punching machine are three or two sets of punching unit, which can be installed with three kinds of punches with different diameters. The three sets of punching dies are moved by numerical control to change the stadia. It can punch not only round holes but also oval holes. Its fast feeding and punching speeds improve production efficiency. For a 50×50×4mm angle steel, the output is 9-10 tons every eight hours.
2. The cnc angle punching machine marking unit is closed with good rigidity. The marking unit has four sets of cassettes, which is chosen by programming and the typing stadia can be set at will. In addition, can choose the disc typing method. The disc typing has 10 rows and automatically selects characters without manual intervention, which greatly improves typing efficiency.
3. The cnc angle bar cutting machine cutting unit adopts single blade shearing which is popular with large shearing force. There is no waste in each cutting and the cutting surface is neat and smooth. The blade box has an open door design, which makes blade changing quick and safe.
4. The horizontal material table transfers the angle bar to the rotating material rack, which is driven by motor and reducer to place the angle bar steadily on the feeding conveyor.
5. The workpiece is held and fed by CNC feeding carriage with high positioning accuracy. CNC feeding carriage is driven by servo motor with photoelectric encoder feedback, closed-loop control.
6. The cnc angle steel metal punching marking machine's hydraulic system provides power for punching, typing, and shearing. A high-speed hydraulic station with an accumulator is used, and the hydraulic lines utilize ferrule-type connections, which are leak-proof and easy to replace and maintain. The main hydraulic valve blocks are all Atos brand, ensuring a stable and efficient hydraulic system.
7. The cooling system of the hydraulic station includes water cooling, air cooling or oil chiller. Customers can choose the cooling method according to actual conditions.
8. The control system is mainly composed of upper computer, PLC, servo motor, external detection switch etc. The operator only needs to input processing requirements, the processing program can be automatically generated, it can also read DXF, NC and other processing files generated by lofting software. The man-machine interface display of the upper computer software is intuitive, and the operation is simple. lt can realize the function of work piece graph display, large amount of data storage, location data display, fault alarm and so on.
These samples, which reflect typical specifications and processing requirements within the angle steel tower sector, enable users to directly evaluate the equipment's processing quality, accuracy, and craftsmanship standards.
In the construction of ultra-high voltage (UHV) transmission lines, where towers are required to endure severe weather conditions and substantial loads, this equipment is integral to processing the angle steel components that constitute the core structure of the towers. It reliably carries out drilling and stamping operations on the angle steel utilized in tower bodies, cross-arms, and other essential structural elements. This guarantees precise dimensional accuracy and robust connections, thereby ensuring the overall stability and reliability of the towers.
